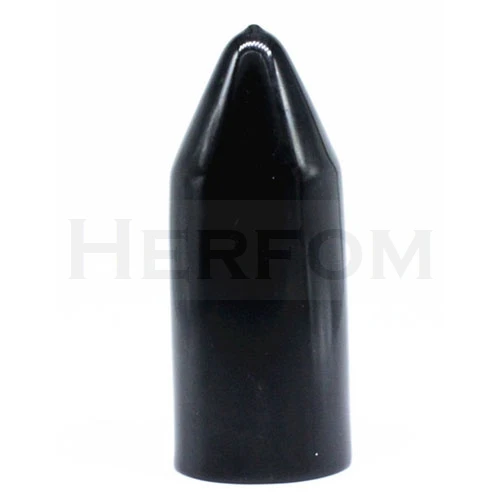

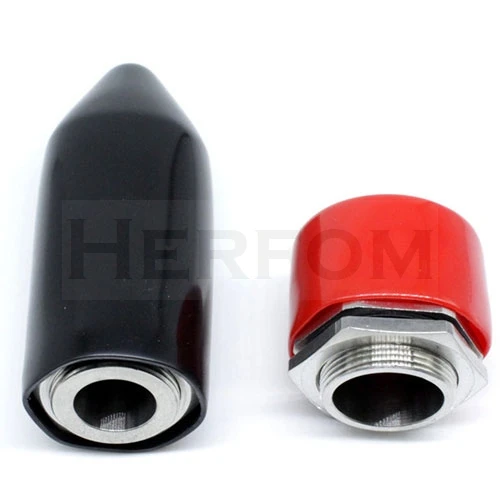

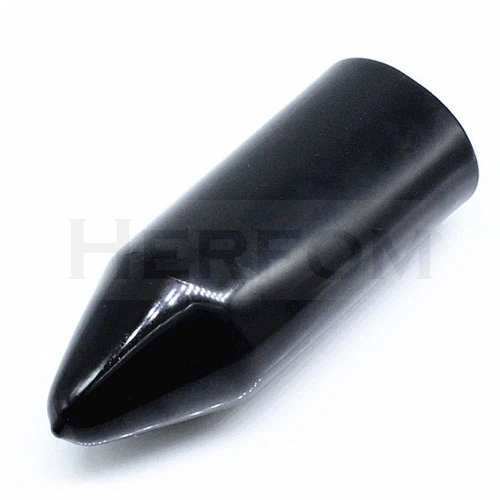

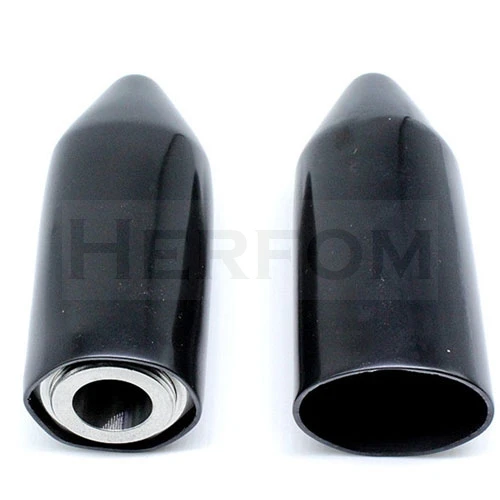

PVC Cable Gland Shroud
Introduction
- Material: PVC
- Appearance: Smooth and elastic,
- Product Usage: Used to protect the appearance of the gland and reduce dust as much as possible.
Specification

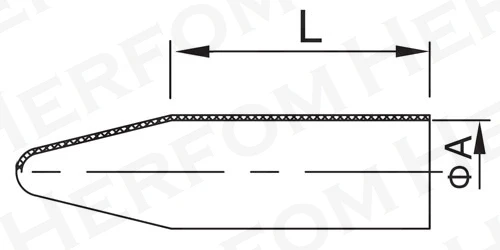

| M | G | NPT | A/Φ(mm) | L(mm) |
|---|---|---|---|---|
| Other Size | Please contact sales | |||
| M20 | G1/2 | NPT1/2 | 26.8 | 80 |
| M20 | G1/2 | NPT1/2 | 27 | 58 |
| M25 | G3/4 | NPT3/4 | 33 | 62 |
| M25 | G3/4 | NPT3/4 | 34 | 85 |
| M32 | G1 | NPT1 | 38 | 80 |
| M32 | G1 | NPT1 | 40 | 91 |
| M40 | G1 1/4 | NPT1 1/4 | 48.5 | 90 |
| M40 | G1 1/4 | NPT1 1/4 | 51 | 105 |
| M50 | G1 1/2 | NPT1 1/2 | 58.5 | 90 |
| M50 | G1 1/2 | NPT1 1/2 | 60.5 | 120 |
| M63 | G2 | NPT2 | 71.5 | 100 |
| M63 | G2 | NPT2 | 73 | 160 |
| M88 | G3 | NPT3 | 108 | 120 |
| Other Size | Please contact sales |
