    Porous Multiple Holes Cable Gland
    Porous Multiple Holes Cable Gland

    Porous Multiple Holes Cable Gland

  • Support non-standard customization
  • Material: Brass / Stainless Steel
  • Thread Specifications: M (Metric), PG, G (PF), NPT
  • Protection Level: IP68
    • Send Inquiry Now

    Introduction

    • Thread Specifications: M (Metric), PG, G (PF), NPT
    • Material: Brass / Stainless Steel
    • Protection Level: IP68
    • Working Temperature: Static -40℃ to 100℃, or can heat up to 120℃ instantly. (Can be customized from -60℃ to 220℃)
    • Product Features: Special clamping jaw and clamping ring design, large clamping cable range, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, grease and general solvents
    • Support non-standard customization

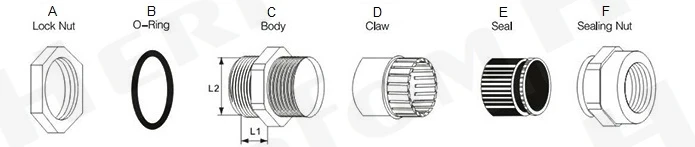

    Structure

    content-1

    • Parts A, C, and F are made of Nickel-plated brass / Stainless Steel.

    • Part D is made of nylon.

    • Parts B and E are made of nitrile rubber.

      (Can be customized high temperature resistant silica gel, acid and alkali resistant fluorine rubber)

    Specification

    1. img
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M12X1.5 CGS-POR-M12-H2-3 1.2-3 12 7 14/14
    M16X1.5 CGS-POR-M16-H2-04 1.6-4 16 8 18/18
    M18X1.5 CGS-POR-M18-H2-03 2-3.5 18 8 20/20
    M20X1.5 CGS-POR-M20-H2-05 1.5-5.3 20 8 22/22
    M22X1.5 CGS-POR-M22-H2-06 2.5-6 22 9 24/24
    M25X1.5 CGS-POR-M25-H2-08 4-8.7 25 9 24/27
    M27X1.5 CGS-POR-M27-H2-08 4.5-8.7 27 9 30/30
    M32X1.5 CGS-POR-M32-H2 -10 5-10 32 10 35/35
    PG7 CGS-POR-PG7-H2-02 1.2-2.6 12.5 7 14/15
    PG9 CGS-POR-PG9-H2-02 1.2-2.6 15.2 8 17/18
    PG11 CGS-POR-PG11-H2-04 1.6-4 18.6 8 20/21
    PG13.5 CGS-POR-PG13-H2-05 1.5-5.3 20.4 8 22/23
    PG16 CGS-POR-PG16-H2-06 2.5-6 22.5 9 24/25
    PG21 CGS-POR-PG21-H2-08 4.5-8.7 28.3 9 30/30
    PG29 CGS-POR-PG29-H2-10 5-10 37 10 40/40
    G1/2 CGS-POR-G21-H2-05 1.5-5.3 20.9 8 22/23
    G3/4 CGS-POR-G26-H2-08 4.5-8.7 26.4 9 30/30
    G1 CGS-POR-G33-H2-10 5-10 33.2 10 40/40

    1. img　
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M12X1.5 CGS-POR-M12-H3-02 1.2-2.6 12 7 14/14
    M16X1.5 CGS-POR-M16-H3-02 1.2-2.6 16 8 18/18
    M18X1.5 CGS-POR-M18-H3-04 1.6-4 18 8 20/20
    M20X1.5 CGS-POR-M20-H3-05 2-5 20 8 22/22
    M22X1.5 CGS-POR-M22-H3-03 1.5-3.5 22 9 24/24
    M25X1.5 CGS-POR-M25-H3-08 4-8 25 9 24/27
    M27X1.5 CGS-POR-M27-H3-05 2-5 27 9 30/30
    M32X1.5 CGS-POR-M32-H3 -10 5-10 32 10 35/35
    PG7 CGS-POR-PG7-H3-02 1.2-2.6 12.5 7 14/15
    PG9 CGS-POR-PG9-H3-02 1.2-2.6 15.2 8 17/18
    PG11 CGS-POR-PG11-H3-04 1.6-4 18.6 8 20/21
    PG13.5 CGS-POR-PG13-H3-03 1.5-3.5 20.4 8 22/23
    PG16 CGS-POR-PG16-H3-03 1.5-3.5 22.5 9 24/25
    PG21 CGS-POR-PG21-H3-05 2-5 28.3 9 30/30
    PG29 CGS-POR-PG29-H3-10 5-10 37 10 40/40
    G1/2 CGS-POR-G21-H3-05 2-5 20.9 8 22/23
    G3/4 CGS-POR-G26-H3-05 2-5 26.4 9 30/30
    G1 CGS-POR-G33-H3 -10 5-10 33.2 10 40/40

    1. img
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M12X1.5 CGS-POR-M12-H4-02 1-2.3 12 7 14/14
    M16X1.5 CGS-POR-M16-H4-02 1-2.3 16 8 18/18
    M18X1.5 CGS-POR-M18-H4-02 1.2-3 18 8 20/20
    M20X1.5 CGS-POR-M20-H4-04 1.7-4.2 20 8 22/22
    M22X1.5 CGS-POR-M22-H4-04 2-4.5 22 9 24/24
    M25X1.5 CGS-POR-M25-H4-05 2-5 25 9 24/27
    M27X1.5 CGS-POR-M27-H4-07 3.5-7 27 9 30/30
    M32X1.5 CGS-POR-M32-H4-09 4.5-9 32 10 35/35
    PG7 CGS-POR-PG7-H4-02 1-2.3 12.5 7 14/15
    PG9 CGS-POR-PG9-H4-02 1-2.3 15.2 8 17/18
    PG11 CGS-POR-PG11-H4-02 1.2-3 18.6 8 20/21
    PG13.5 CGS-POR-PG13-H4-04 1.7-4.2 20.4 8 22/23
    PG16 CGS-POR-PG16-H4-04 2-4.5 22.5 9 24/25
    PG21 CGS-POR-PG21-H4-07 3.5-7 28.3 9 30/30
    PG29 CGS-POR-PG29-H4-09 4.5-9 37 10 40/40
    G1/2 CGS-POR-G21-H4-04 1.7-4.2 20.9 8 22/23
    G3/4 CGS-POR-G26-H4-07 3.5-7 26.4 9 30/30
    G1 CGS-POR-G33-H4-09 4.5-9 33.2 10 40/40

    1. img　
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M16X1.5 CGS-POR-M16-H5-02 1.5-2.6 16 8 18/18
    M18X1.5 CGS-POR-M18-H5-03 1.2-3 18 8 20/20
    M20X1.5 CGS-POR-M20-H5-05 1.5-5.3 20 8 22/22
    M25X1.5 CGS-POR-M25-H5-03 1.5-3.5 25 9 24/27
    M27X1.5 CGS-POR-M27-H5-03 1.5-3.5 27 9 30/30
    M32X1.5 CGS-POR-M32-H5-08 4-8 32 10 35/35
    PG9 CGS-POR-PG9-H5-02 1-2.5 15.2 8 17/18
    PG11 CGS-POR-PG11-H5-02 1.5-2.6 18.6 8 20/21
    PG13.5 CGS-POR-PG13-H5-04 1.7-4.2 20.4 8 22/23
    PG21 CGS-POR-PG21-H5-03 1.5-3.5 28.3 9 30/30
    PG29 CGS-POR-PG29-H5-08 4-8 37 10 40/40
    G1/2 CGS-POR-G21-H5-03 1.2-3 20.9 8 22/23
    G3/4 CGS-POR-G26-H5-03 1.5-3.5 26.4 9 30/30
    G1 CGS-POR-G33-H5-08 4-8 33.2 10 40/40

    1. img
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M16X1.5 CGS-POR-M16-H6-02 1-2 16 8 18/18
    M18X1.5 CGS-POR-M18-H6-02 1-2.2 18 8 20/20
    M20X1.5 CGS-POR-M20-H6-03 1.2-3 20 8 22/22
    M25X1.5 CGS-POR-M25-H6-03 1.5-3.4 25 9 24/27
    M27X1.5 CGS-POR-M27-H6-03 1.5-3.4 27 9 30/30
    M32X1.5 CGS-POR-M32-H6-07 3.5-7 32 10 35/35
    PG9 CGS-POR-PG9-H6-02 1-2 15.2 8 17/18
    PG11 CGS-POR-PG11-H6-02 1-2.2 18.6 8 20/21
    PG21 CGS-POR-PG21-H6-03 1.5-3.5 28.3 9 30/30
    PG29 CGS-POR-PG29-H6-07 3.5-7 37 10 40/40
    G1/2 CGS-POR-G21-H6-03 1.2-3 20.9 8 22/23
    G3/4 CGS-POR-G26-H6-03 1.5-3.5 26.4 9 30/30
    G1 CGS-POR-G33-H6-07 3.5-7 33.2 10 40/40

    1. img
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M20X1.5 CGS-POR-M20-H7-03 1.2-3 20 8 22/22
    M25X1.5 CGS-POR-M25-H7-03 1.5-3.5 25 9 24/27
    M27X1.5 CGS-POR-M27-H7-03 1.5-3.5 27 9 30/30
    M32X1.5 CGS-POR-M32-H7-06 3-6 32 10 35/35
    PG21 CGS-POR-PG21-H7-03 1.5-3.5 28.3 9 30/30
    PG29 CGS-POR-PG29-H7-06 3-6 37 10 40/40
    G1/2 CGS-POR-G21-H7-03 1.2-3 20.9 8 22/23
    G3/4 CGS-POR-G26-H7-03 1.5-3.5 26.4 9 30/30
    G1 CGS-POR-G33-H7-06 3-6 33.2 10 40/40

    1. img
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M20X1.5 CGS-POR-M20-H8-03 1.2-3 20 8 22/22
    M25X1.5 CGS-POR-M25-H8-03 1.5-3.5 25 9 24/27
    M27X1.5 CGS-POR-M27-H8-03 1.5-3.5 27 9 30/30
    G1/2 CGS-POR-G21-H8-03 1.2-3 20.9 8 22/23
    G3/4 CGS-POR-G26-H8-03 1.5-3.5 26.4 9 30/30

    1. img
    Thread Item.No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    M18X1.5 CGS-POR-M18-0610 6x10 18 8 20/20
    M20X1.5 CGS-POR-M20-0511 5x11 20 8 22/22
    M22X1.5 CGS-POR-M22-0614 6x14 22 9 24/24
    M25X1.5 CGS-POR-M25-0614 6x14 25 9 24/27
    M27X1.5 CGS-POR-M27-0718 7x18 27 9 30/30
    M32X1.5 CGS-POR-M32-0822 8x22 32 10 35/35
    PG11 CGS-POR-PG11-0610 6x10 18.6 8 20/21
    PG13.5 CGS-POR-PG13-0511 5x11 20.4 8 22/23
    PG16 CGS-POR-PG16-0614 6x14 22.5 9 24/25
    PG21 CGS-POR-PG21-0718 7x18 28.3 9 30/30
    PG29 CGS-POR-PG29-0822 8x22 37 10 40/40
    G1/2 CGS-POR-G21-0511 5x11 20.9 8 22/23
    G3/4 CGS-POR-G26-0718 7x18 26.4 9 30/30
    G1 CGS-POR-G33-0822 8x22 33.2 10 40/40
