    HERFOM Products Cable Gland Series Metal Cable Gland Stainless Steel Cable Gland

    Categories

    Stainless Steel Cable Gland
    Stainless Steel Cable Gland

    Stainless Steel Cable Gland

  • Support non-standard customization
  • Material: Stainless steel 304/316
  • Thread Specifications: M (Metric), PG, G (PF), NPT
  • Protection Level: IP68
    • Send Inquiry Now

    Introduction

    • Thread Specifications: M (Metric), PG, G (PF), NPT
    • Material: Stainless steel 304/316
    • Protection Level: IP68
    • Working Temperature: Static -40℃ to 100℃, or can heat up to 120℃ instantly. (Can be customized from -60℃ to 220℃)
    • Product Features: Special clamping jaw and clamping ring design, large clamping cable range, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, grease and general solvents
    • Support non-standard customization

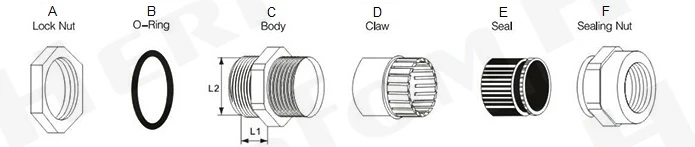

    Structure

    content-1

    • Parts A, C, and F are made of stainless steel 304/316.

    • Part D is made of nylon.

    • Parts B and E are made of nitrile rubber.

      (Can be customized high temperature resistant silica gel, acid and alkali resistant fluorine rubber)

    Specification

    1.Metric

    Thread Item No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    Other Size Please contact sales
    M8x1.25 CGS-SS-M8-4 2-4 8 5 11/11
    M10x1.5 CGS-SS-M10-6.5 3-6.5 10 6.5 14/14
    M12x1.5 CGS-SS-M12-6.5 3-6.5 12 6.5 14/14
    M12x1.5 CGS-SS-M12-8 4-8 12 7 17/14
    M14x1.5 CGS-SS-M14-8 4-8 14 7 17/17
    M16x1.5 CGS-SS-M16-8 4-8 16 8 18/18
    M16x1.5 CGS-SS-M16-10 5-10 16 8 20/18
    M18x1.5 CGS-SS-M18-10 5-10 18 8 20/20
    M20x1.5 CGS-SS-M20-12 6-12 20 8 22/22
    M22x1.5 CGS-SS-M22-14 10-14 22 8 24/24
    M24x1.5 CGS-SS-M24-14 10-14 24 9 24/27
    M25x1.5 CGS-SS-M25-14 10-14 25 9 24/27
    M25x1.5 CGS-SS-M25-16 12-16 25 9 27/27
    M25x1.5 CGS-SS-M25-18 13-18 25 9 30/27
    M27x1.5 CGS-SS-M27-18 13-18 27 9 30/30
    M28x1.5 CGS-SS-M28-18 13-18 28 9 30/30
    M30x1.5 CGS-SS-M30-18 13-18 30 9 30/32
    M32x1.5 CGS-SS-M32-22 15-22 32 10 35/35
    M33x1.5 CGS-SS-M33-22 15-22 33 10 35/35
    M36x1.5 CGS-SS-M36-25 18-25 36 10 40/40
    M37x1.5 CGS-SS-M37-25 18-25 37 10 40/40
    M40x1.5 CGS-SS-M40-25 18-25 40 11 40/45
    M40x1.5 CGS-SS-M40-30 22-30 40 11 45/45
    M42x1.5 CGS-SS-M42-30 22-30 42 11 45/45
    M47x1.5 CGS-SS-M47-33 25-33 47 11 50/50
    M48x1.5 CGS-SS-M48-33 25-33 48 11 50/50
    M50x1.5 CGS-SS-M50-38 32-38 50 12 57/55
    M54x1.5 CGS-SS-M54-38 32-38 54 12 57/57
    M56x1.5 CGS-SS-M56-38 32-38 56 12 57/59
    M60x1.5 CGS-SS-M60-44 37-44 60 13 64/64
    M63x1.5 CGS-SS-M63-44 37-44 63 13 64/68
    M64x2 CGS-SS-M64-44 37-44 64 13 64/68
    M72x2 CGS-SS-M72-52 42-52 72 15 78/78
    M75x2 CGS-SS-M75-52 42-52 75 15 78/80
    M80x2 CGS-SS-M80-62 55-62 80 15 88/88
    M88x2 CGS-SS-M88-70 65-70 88 15 94/94
    M100x2 CGS-SS-M100-84 78-84 100 15 110/110
    Other Size Please contact sales

    2.PG

    Thread Item No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
    Other Size Please contact sales
    PG7 CGS-SS-PG7-6.5 3-6.5 12.5 7 14/14
    PG7 CGS-SS-PG7-5 2-5 12.5 7 14/14
    PG9 CGS-SS-PG9-8 4-8 15.2 8 17/17
    PG9 CGS-SS-PG9-6 2-6 15.2 8 17/17
    PG11 CGS-SS-PG11-10 5-10 18.6 8 20/20
    PG11 CGS-SS-PG11-7 3-7 18.6 8 20/20
    PG13.5 CGS-SS-PG13.5-12 6-12 20.4 8 22/22
    PG13.5 CGS-SS-PG13.5-9 5-9 20.4 8 22/22
    PG16 CGS-SS-PG16-14 10-14 22.5 9 24/24
    PG16 CGS-SS-PG16-12 6-12 22.5 9 24/24
    PG19 CGS-SS-PG19-14 10-14 25 9 24/27
    PG21 CGS-SS-PG21-18 13-18 28.3 9 30/30
    PG21 CGS-SS-PG21-16 9-16 28.3 9 30/30
    PG25 CGS-SS-PG25-22 15-22 32 10 35/35
    PG29 CGS-SS-PG29-25 18-25 37 11 40/40
    PG29 CGS-SS-PG29-20 13-20 37 11 40/40
    PG36 CGS-SS-PG36-30 22-30 47 12 50/50
    PG36 CGS-SS-PG36-26 20-26 47 12 50/50
    PG42 CGS-SS-PG42-38 32-38 54 13 57/57
    PG42 CGS-SS-PG42-31 25-31 54 13 57/57
    PG48 CGS-SS-PG48-44 37-44 59.3 14 64/64
    PG48 CGS-SS-PG48-35 29-35 59.3 14 64/64
    PG63 CGS-SS-PG63-52 42-52 72 15 77/77
    Other Size Please contact sales

    3.G(PF)

    Thread Item No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm) Thread No. Per Inch Joint Length (mm)
    Other Size Please contact sales
    G1/4 CGS-SS-G1/4-6.5 3-6.5 13.1 7 14/14 19 19
    G3/8 CGS-SS-G3/8-8 4-8 16.6 8 18/18 19 19
    G1/2 CGS-SS-G1/2-12 6-12 20.9 8 22/22 19 22
    G3/4 CGS-SS-G3/4-18 13-18 26.4 9 30/30 14 25
    G1 CGS-SS-G1-25 18-25 33.2 11 40/40 11 29
    G1 1/4 CGS-SS-G1-1/4-33 22-33 41.9 13 50/50 11 35
    G1 1/2 CGS-SS-G1-1/2-38 32-38 47.8 14 57/57 11 37
    G2 CGS-SS-G2-44 37-44 59.6 14 65/65 11 38
    G2 1/2 CGS-SS-G2-1/2-52 42-52 75.1 15 77/77 11 38
    G3 CGS-SS-G3-70 65-70 87.8 15 94/94 11 48
    Other Size Please contact sales

    4.NPT

    Thread Item No. Cable Range Φ (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm) Thread No. Per Inch Joint Length (mm)
    Other Size Please contact sales
    NPT1/4 CGS-SS-NPT1/4-6.5 3-6.5 13.6 7 14/14 18 19
    NPT3/8 CGS-SS-NPT3/8-8 4-8 17 8 18/18 18 19
    NPT1/2 CGS-SS-NPT1/2-12 6-12 21.2 8 22/22 14 22
    NPT3/4 CGS-SS-NPT3/4-18 13-18 26.5 9 30/30 14 25
    NPT1 CGS-SS-NPT1-25 18-25 33.2 11 40/40 11.5 29
    NPT1 1/4 CGS-SS-NPT1-1/4-23 22-23 41.9 13 50/50 11.5 35
    NPT1 1/2 CGS-SS-NPT1-1/2-38 32-38 48 14 57/57 11.5 37
    NPT2 CGS-SS-NPT2-44 37-44 60 14 65/65 11.5 38
    NPT2 1/2 CGS-SS-NPT2-1/2-52 42-52 72.6 15 77/77 8 38
    NPT3 CGS-SS-NPT3-70 65-70 88.6 15 94/94 8 45
    Other Size Please contact sales
