Nylon / PP Cable Gland

HERFOM Products Cable Gland Series Plastic Cable Gland Nylon / PP Cable Gland

Please send your inquiry to our email: website@herfom.com, we will give you a quote within 24 hours at the earliest. We have a quick-response sales team.

Material: Nylon(PA) / PP

Color: Gray / Black

Protection Level: IP68

Send Inquiry Now

Tips

If you have other special requirements for the product, please contact sales. We can customize it for you.

Description

Introduction

Thread Specifications: M (Metric), PG, NPT, G, MG
Material: Nylon(PA) / PP,

Seal Material: Nitrile Rubber (NBR)
Color: Gray / Black
Protection Level: IP68
Working Temperature:

Static -40℃ to 100℃, short time to 120℃ Dynamic -20℃ to 80℃, short time to 100℃
Features: Long life, Small shrinkage, Good toughness, Oxidation resistance, Wear resistance

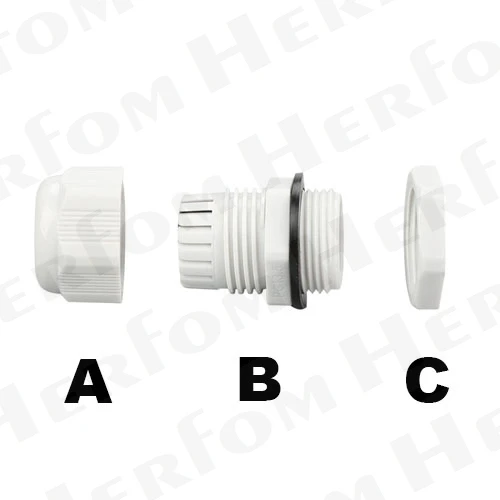

Structure

content-1

A: Tight head
B: Clamping claw & body
C: Nut

Specification

1. Metric

Thread	Item No.	Cable Range (mm)	Thread Length (mm)	Spanner size (mm)	Thread Outer Diameter(mm)
Other Size	Please contact sales
M10x1	CGS-NYL-M10-6.5	3-6.5	8	15	10
M12x1.5	CGS-NYL-M12-6.5	3-6.5	8	16	12
M12x1.5	CGS-NYL-M12-5	2-5	8	16	12
M14x1.5	CGS-NYL-M14-8	4-8	8	19	14
M14x1.5	CGS-NYL-M14-6	2-6	8	19	14
M16x1.5	CGS-NYL-M16-8	4-8	8	19	16
M16x1.5	CGS-NYL-M16-6	2-6	8	19	16
M16x1.5	CGS-NYL-M16-10	5-10	8	22	16
M16x1.5	CGS-NYL-M16-7	3-7	8	22	16
M18x1.5	CGS-NYL-M18-10	5-10	8	22	18
M18x1.5	CGS-NYL-M18-7	3-7	8	22	18
M20x1.5	CGS-NYL-M20-12	6-12	9	27	20
M20x1.5	CGS-NYL-M20-14	10-14	10	27	20
M20x1.5	CGS-NYL-M20-12	7-12	10	27	20
M20x1.5	CGS-NYL-M20-9	5-9	9	27	20
M24x1.5	CGS-NYL-M24-15	12-15	10	27	24
M24x1.5	CGS-NYL-M24-12	10-12	10	27	24
M25x1.5	CGS-NYL-M25-18	13-18	10	33	25
M25x1.5	CGS-NYL-M25-16	9-16	10	33	25
M27x1.5	CGS-NYL-M27-18	13-18	10	33	27
M27x1.5	CGS-NYL-M27-16	9-16	10	33	27
M30x1.5	CGS-NYL-M30-21	12-21	11	35/36	30
M30x1.5	CGS-NYL-M30-5	7-5	11	35/36	30
M32x1.5	CGS-NYL-M32-21	12-21	11	36/37	32
M32x1.5	CGS-NYL-M32-15	7-15	11	36/37	32
M32x1.5	CGS-NYL-M32-25	18-25	12	41/42	32
M32x1.5	CGS-NYL-M32-20	13-20	12	41/42	32
M36x1.5	CGS-NYL-M36-25	18-25	12	41/42	36
M36x1.5	CGS-NYL-M36-20	13-20	12	41/42	36
M40x1.5	CGS-NYL-M40-32	22-32	14	52/53	40
M40x1.5	CGS-NYL-M40-26	20-26	14	52/53	40
M50x1.5	CGS-NYL-M50-38	32-38	14	60/61	50
M50x1.5	CGS-NYL-M50-31	25-31	14	60/61	50
M63x1.5	CGS-NYL-M63-44	37-44	14	67	67
M63x1.5	CGS-NYL-M63-35	29-35	14	67	67
M75x2	CGS-NYL-M75-60	53-60	25	82	75
M75x2	CGS-NYL-M75-55	48-55	25	82	75
Other Size	Please contact sales

2. PG

Thread	Model	Cable Range (mm)	Thread Length (mm)	Spanner size (mm)	Thread Outer Diameter(mm)
Other Size	Please contact sales
PG7	CGS-NYL-PG7-6.5	3-6.5	8	16	12.5
PG7	CGS-NYL-PG7-5	2-5	8	16	12.5
PG9	CGS-NYL-PG9-8	4-8	8	19	15.2
PG9	CGS-NYL-PG9-6	2-6	8	19	15.2
PG11	CGS-NYL-PG11-10	5-10	8	22	18.6
PG11	CGS-NYL-PG11-7	3-7	8	22	18.6
PG13.5	CGS-NYL-PG13.5-12	6.7-12	9	24	20.4
PG13.5	CGS-NYL-PG13.5-9	5-9	9	24	20.4
PG16	CGS-NYL-PG16-14	10.2-14	10	27	22.5
PG16	CGS-NYL-PG16-12	7-12	10	27	22.5
PG21	CGS-NYL-PG21-18	13-18	10	33	28.3
PG21	CGS-NYL-PG21-16	9-16	10	33	28.3
PG29	CGS-NYL-PG29-25	18-25	12	41/42	37
PG29	CGS-NYL-PG29-20	13-20	12	41/42	37
PG36	CGS-NYL-PG36-32	23-32	14	52/53	47
PG36	CGS-NYL-PG36-26	20-26	14	52/53	47
PG42	CGS-NYL-PG42-38	32-38	14	60/61	54
PG42	CGS-NYL-PG42-31	25-31	14	60/61	54
PG48	CGS-NYL-PG48-44	37-44	14	64/65	59.3
PG48	CGS-NYL-PG48-35	29-35	14	64/65	59.3
Other Size	Please contact sales

3. NPT

Thread	Item No.	Cable Range (mm)	Thread Length (mm)	Spanner size (mm)	Thread Outer Diameter(mm)
Other Size	Please contact sales
NPT1/4	CGS-NYL-NPT1/4-6.5	3-6.5	8	15/16	13.7
NPT1 1/4	CGS-NYL-NPT1-1/4-5	2-5	8	15/16	13.7
NPT3/8	CGS-NYL-NPT3/8-8	4-8	15	19	17
NPT3/8	CGS-NYL-NPT3/8-6	2-6	15	19	17
NPT1/2	CGS-NYL-NPT1/2-12	6-12	13	24	21.2
NPT1/2	CGS-NYL-NPT1/2-9	5-9	13	24	21.2
NPT1/2	CGS-NYL-NPT1/2-14	10-14	13	27	21.2
NPT1/2	CGS-NYL-NPT1/2-12	7-12	13	27	21.2
NPT3/4	CGS-NYL-NPT3/4-18	13-18	15	33	26.2
NPT3/4	CGS-NYL-NPT3/4-16	9-16	15	33	26.2
NPT1	CGS-NYL-NPT1-25	18-25	16	41	33.3
NPT1	CGS-NYL-NPT1-20	13-20	16	41	33.3
NPT1 1/4	CGS-NYL-NPT1-1/4-25	18-25	18	42/46	42
NPT1 1/4	CGS-NYL-NPT1-1/4-20	13-20	18	42/46	42
NPT1 1/2	CGS-NYL-NPT1-1/2-32	22-32	15	52/53	48
NPT1 1/2	CGS-NYL-NPT1-1/2-26	20-26	15	52/53	48
NPT2	CGS-NYL-NPT2-44	37-44
NPT2	CGS-NYL-NPT2-35	29-35
Other Size	Please contact sales

4. G

Thread	Item No.	Cable Range (mm)	Thread Length (mm)	Spanner size (mm)	Thread Outer Diameter(mm)
Other Size	Please contact sales
G1/4"	CGS-NYL-G1/4-6.5	3-6.5	8	15/16	13.1
G1/4"	CGS-NYL-G1/4-5	2-5	8	15/16	13.1
G3/8"	CGS-NYL-G3/8-8	4-8	15	19	16.6
G3/8"	CGS-NYL-G3/8-6	2-6	15	19	16.6
G1/2"	CGS-NYL-G1/2-12	6-12	13	24	20.9
G1/2"	CGS-NYL-G1/2-9	5-9	13	24	20.9
G1/2"	CGS-NYL-G1/2-14	10-14	13	27	20.9
G1/2"	CGS-NYL-G1/2-12	7-12	13	27	20.9
G3/4"	CGS-NYL-G3/4-18	13-18	15	33	26.4
G3/4"	CGS-NYL-G3/4-16	9-16	15	33	26.4
G1"	CGS-NYL-G1-25	18-25	16	41	33.2
G1"	CGS-NYL-G1-20	13-20	16	41	33.2
G1 1/4"	CGS-NYL-G1-1/4-25	18-25	18	42/46	41.9
G1 1/4"	CGS-NYL-G1-1/4-20	13-20	18	42/46	41.9
G1 1/2"	CGS-NYL-G1-1/2-32	22-32	15	52/53	47.8
G1 1/2"	CGS-NYL-G1-1/2-26	20-26	15	52/53	47.8
G2"	CGS-NYL-G2-44	37-44	15	64	59.6
G2"	CGS-NYL-G2-35	29-35	15	64	59.6
Other Size	Please contact sales

5. MG

Thread	Item No.	Cable Range (mm)	Thread Length (mm)	Spanner size (mm)	Thread Outer Diameter(mm)
MG12	CGS-NYL-MG12-8	4.5-8	9	17/19	12
MG12	CGS-NYL-MG12-5.3	3-5.3	9	17/19	12
MG16	CGS-NYL-MG16-10	6-10	15	22	16
MG16	CGS-NYL-MG16-7	4-7	15	22	16
MG20	CGS-NYL-MG20-14	9-14	15	26/27	20
MG20	CGS-NYL-MG20-11	6-11	15	26/27	20
MG25	CGS-NYL-MG25-18	13-18	15	32/33	25
MG25	CGS-NYL-MG25-16	10-16	15	32/33	25
MG32	CGS-NYL-MG32-25	18-25	15	41	32
MG32	CGS-NYL-MG32-22	15-22	15	41	32
MG40	CGS-NYL-MG40-30	24-30	20	50	40
MG40	CGS-NYL-MG40-25	20-25	20	50	40
MG50	CGS-NYL-MG50-40	30-40	23	60/62	50
MG50	CGS-NYL-MG50-32	26-32	23	60/62	50
MG63	CGS-NYL-MG63-50	40-50	24	73/75	63
MG63	CGS-NYL-MG63-46	38-46	24	73/75	63
