    Introduction

    • Thread Specifications: M (Metric), PG, NPT, G

    • Material: Nylon(PA),

      Seal Material: Nitrile Rubber (NBR)

    • Color: Gray / Black

    • Protection Level: IP68

    • Working Temperature:

      Static -40℃ to 100℃, short time to 120℃ Dynamic -20℃ to 80℃, short time to 100℃

    • Features: Long life, Small shrinkage, Good toughness, Oxidation resistance, Wear resistance

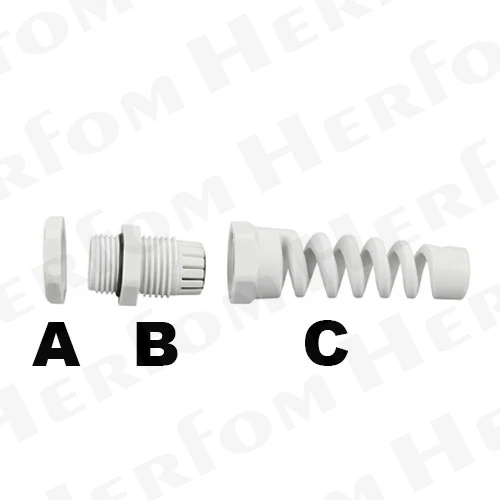

    Structure

    content-1

    • A: Nut

    • B: Body & Clamping jaw

    • C: Anti-bending compression nut

    Specification

    1. Metric

    Thread Item No. Cable Range (mm) Thread Length (mm) Spanner size (mm) Thread Outer Diameter(mm)
    Other Size Please contact sales
    M12x1.5 CGS-NYL-SPIR-M12-6.5 3-6.5 8 15/16 12
    M12x1.5 CGS-NYL-SPIR-M12-5 2-5 8 15/16 12
    M14x1.5 CGS-NYL-SPIR-M14-8 4-8 8 19 14
    M14x1.5 CGS-NYL-SPIR-M14-6 2-6 8 19 14
    M16x1.5 CGS-NYL-SPIR-M16-8 4-8 8 19 16
    M16x1.5 CGS-NYL-SPIR-M16-6 2-6 8 19 16
    M16x1.5 CGS-NYL-SPIR-M16-10 5-10 8 22 16
    M16x1.5 CGS-NYL-SPIR-M16-7 3-7 8 22 16
    M18x1.5 CGS-NYL-SPIR-M18-10 5-10 8 22 18
    M18x1.5 CGS-NYL-SPIR-M18-7 3-7 8 22 18
    M20x1.5 CGS-NYL-SPIR-M20-12 6-12 9 24 20
    M20x1.5 CGS-NYL-SPIR-M20-9 5-9 9 24 20
    M20x1.5 CGS-NYL-SPIR-M20-14 10-14 10 27 20
    M20x1.5 CGS-NYL-SPIR-M20-12 7-12 10 27 20
    M22x1.5 CGS-NYL-SPIR-M22-14 10-14 10 27 22
    M22x1.5 CGS-NYL-SPIR-M22-12 7-12 10 27 22
    M25x1.5 CGS-NYL-SPIR-M25-18 13-18 10 33 25
    M25x1.5 CGS-NYL-SPIR-M25-16 9-16 10 33 25
    M27x1.5 CGS-NYL-SPIR-M27-18 13-18 10 33 27
    M27x1.5 CGS-NYL-SPIR-M27-16 9-16 10 33 27
    Other Size Please contact sales

    2. PG

    Thread Item No. Cable Range (mm) Thread Length (mm) Spanner size (mm) Thread Outer Diameter(mm)
    Other Size Please contact sales
    PG7 CGS-NYL-SPIR-PG7-6.5 3-6.5 8 15/16 12.5
    PG7 CGS-NYL-SPIR-PG7-5 2-5 8 15/16 12.5
    PG9 CGS-NYL-SPIR-PG9-8 4-8 8 19 15.2
    PG9 CGS-NYL-SPIR-PG9-6 2-6 8 19 15.2
    PG11 CGS-NYL-SPIR-PG11-10 5-10 8 22 18.6
    PG11 CGS-NYL-SPIR-PG11-7 3-7 8 22 18.6
    PG13.5 CGS-NYL-SPIR-PG13.5-12 6-12 9 24 20.4
    PG13.5 CGS-NYL-SPIR-PG13.5-9 5-9 9 24 20.4
    PG16 CGS-NYL-SPIR-PG16-14 10-14 10 27 22.5
    PG16 CGS-NYL-SPIR-PG16-12 7-12 10 27 22.5
    PG21 CGS-NYL-SPIR-PG21-18 13-18 10 33 28.3
    PG21 CGS-NYL-SPIR-PG21-16 9-16 10 33 28.3
    Other Size Please contact sales

    3. NPT

    Thread Item No. Cable Range (mm) Thread Length (mm) Spanner size (mm) Thread Outer Diameter(mm)
    Other Size Please contact sales
    NPT1/4 CGS-NYL-SPIR-NPT1/4-6.5 3-6.5 8 15/16 13.7
    NPT1/4 CGS-NYL-SPIR-NPT1/4-5 2-5 8 15/16 13.7
    NPT3/8 CGS-NYL-SPIR-NPT3/8-8 4-8 15 19/20 17
    NPT3/8 CGS-NYL-SPIR-NPT3/8-6 2-6 15 19/20 17
    NPT3/8 CGS-NYL-SPIR-NPT3/8-10 5-10 15 22 17
    NPT3/8 CGS-NYL-SPIR-NPT3/8-7 3-7 15 22 17
    NPT1/2 CGS-NYL-SPIR-NPT1/2-12 6-12 13 24 21.2
    NPT1/2 CGS-NYL-SPIR-NPT1/2-9 5-9 13 27 21.2
    NPT1/2 CGS-NYL-SPIR-NPT1/2-14 10-14 13 27 21.2
    NPT1/2 CGS-NYL-SPIR-NPT1/2-12 7-12 13 24 21.2
    NPT3/4 CGS-NYL-SPIR-NPT1/2-18 13-18 15 33/34 26.2
    NPT3/4 CGS-NYL-SPIR-NPT1/2-16 9-16 15 33/34 26.2
    Other Size Please contact sales
