DBN Non-Insulated Blade Terminal
Introduction
-
Material: Copper
-
Surface: Outer tin plating

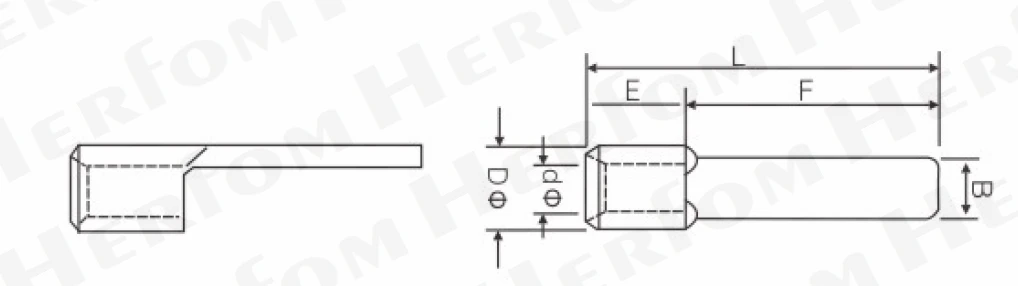

Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | B(mm) | L(mm) | F(mm) | E(mm) | DΦ(mm) | dΦ(mm) | WIRE RANGE AWG/mm² |
|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||||
| DBN 1.25-10 | 2.3 | 14.8 | 10.0 | 4.8 | 3.4 | 1.7 | 22~16 AWG / 0.5~1.2mm² |
| DBN 1.25-11 | 2.3 | 15.8 | 11.0 | 4.8 | 3.4 | 1.7 | 22~16 AWG / 0.5~1.2mm² |
| DBN 1.25-14 | 2.3 | 18.8 | 14.0 | 4.8 | 3.4 | 1.7 | 22~16 AWG / 0.5~1.2mm² |
| DBN 1.25-18 | 2.3 | 22.8 | 18.0 | 4.8 | 3.4 | 1.7 | 22~16 AWG / 0.5~1.2mm² |
| DBN 2-9 | 2.3 | 13.8 | 9.0 | 4.8 | 4.1 | 2.3 | 16~14 AWG / 1.5~2.5mm² |
| DBN 2-14 | 2.3 | 18.8 | 14.0 | 4.8 | 4.1 | 2.3 | 16~14 AWG / 1.5~2.5mm² |
| DBN 2-18 | 2.3 | 22.8 | 18.0 | 4.8 | 4.1 | 2.3 | 16~14 AWG / 1.5~2.5mm² |
| DBN 5.5-10 | 2.8 | 14.8 | 10.0 | 6.0 | 5.6 | 3.4 | 14~12 AWG / 2.5~4mm² |
| DBN 5.5-14 | 4.5 | 21.0 | 14.0 | 6.0 | 5.6 | 3.4 | 14~12 AWG / 2.5~4mm² |
| DBN 5.5-18 | 4.5 | 23.0 | 18.0 | 6.0 | 5.6 | 3.4 | 14~12 AWG / 2.5~4mm² |
| DBN 8-14 | 5.0 | 22.5 | 14.0 | 8.5 | 7.2 | 4.5 | 14~12 AWG / 2.5~4mm² |
| DBN 14-16 | 6.0 | 30.6 | 16.0 | 14.0 | 9.0 | 6.5 | 14~12 AWG / 2.5~4mm² |
| Other Size | Please contact sales |
