DL Aluminium Crimp Lug
Introduction
- Model: DL
- Material: Aluminium
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

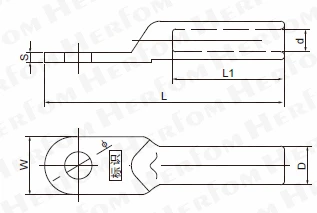

| Item | Φ (mm) | D (mm) | d (mm) | L (mm) | L1 (mm) | W (mm) | S (mm) |
|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||||
| DL-10 | 8.8 | 10 | 5.2 | 65 | 32 | 16 | 2.5 |
| DL-16 | 8.8 | 11 | 6.1 | 70 | 34 | 16 | 3.0 |
| DL-25 | 8.8 | 12 | 7.1 | 75 | 37 | 18 | 3.2 |
| DL-35 | 10.8 | 14 | 8.5 | 85 | 41 | 20 | 3.6 |
| DL-50 | 10.8 | 16 | 9.8 | 90 | 43 | 23 | 4.0 |
| DL-70 | 13 | 18 | 11.5 | 102 | 50 | 26 | 4.5 |
| DL-95 | 13 | 21 | 13.5 | 112 | 54 | 28 | 5.0 |
| DL-120 | 14.8 | 23 | 15 | 120 | 56 | 30 | 5.5 |
| DL-150 | 14.8 | 25 | 17 | 126 | 58 | 34 | 6.0 |
| DL-185 | 17 | 27 | 18.6 | 133 | 60 | 37 | 6.5 |
| DL-240 | 17 | 30 | 21.5 | 140 | 63 | 40 | 7.0 |
| DL-300 | 21 | 34 | 24 | 158 | 70 | 45 | 9.0 |
| DL-400 | 21 | 38 | 27 | 175 | 75 | 52 | 10.0 |
| DL-500 | 21 | 45 | 30 | 190 | 80 | 60 | 11.0 |
| DL-630 | 21 | 50 | 34.2 | 225 | 90 | 78 | 12.0 |
| Other Size | Please Contact Sales |
