DT-G Copper Crimp Lug (Long Crimp Tube)
Introduction
- Title: DT-G Copper Crimp Lug (Long Crimp Tube)
- Model: DT-G
- Material: Copper
- Surface: Natural/Tin Plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

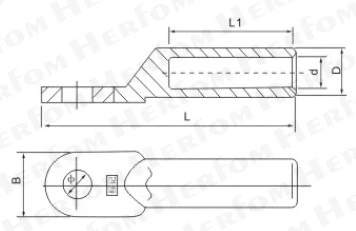

| Item | Φ (mm) | Thickness (mm) | D (mm) | d (mm) | B (mm) | L (mm) |
|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||
| DT-G10 | Φ8 | 1.3 | 8 | 6.4 | 12 | 51 |
| DT-G16 | Φ8 | 1.4 | 9 | 6.2 | 13 | 56 |
| DT-G25 | Φ8 | 1.4 | 10 | 7.2 | 14 | 61 |
| DT-G35 | Φ10 | 1.4 | 11 | 8.2 | 16 | 66 |
| DT-G50 | Φ10 | 1.5 | 13 | 10 | 19 | 72 |
| DT-G70 | Φ12 | 2 | 16 | 12 | 23 | 80 |
| DT-G95 | Φ12 | 2 | 18 | 14 | 26 | 86 |
| DT-G120 | Φ14 | 2.2 | 20 | 15.6 | 29 | 95 |
| DT-G150 | Φ14 | 2.3 | 22 | 17.4 | 32 | 103 |
| DT-G185 | Φ16 | 2.9 | 25 | 19.2 | 36 | 114 |
| DT-G240 | Φ16 | 3 | 27 | 21 | 39 | 120 |
| DT-G300 | Φ18 | 3 | 30 | 24 | 43 | 135 |
| DT-G400 | Φ18 | 3.5 | 33 | 26 | 48 | 156 |
| DT-G500 | Φ20 | 4 | 40 | 32 | 170 | |
| DT-G630 | Φ22 | 4.5 | 45 | 35 | 210 | |
| DT-G800 | Φ22 | 5 | 50 | 40 | 270 | |
| DT-G1000 | Φ24 | 5.5 | 56 | 45 | 290 | |
| Other Size | Please contact sales |
