DT-S Copper Lug (Oil-Plugging)
Introduction
- Title: DT-S Copper Crimp Lug (Oil-Plugging & Long Crimp Tube)
- Model: DT-S
- Material: Copper
- Surface: Natural/Tin Plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

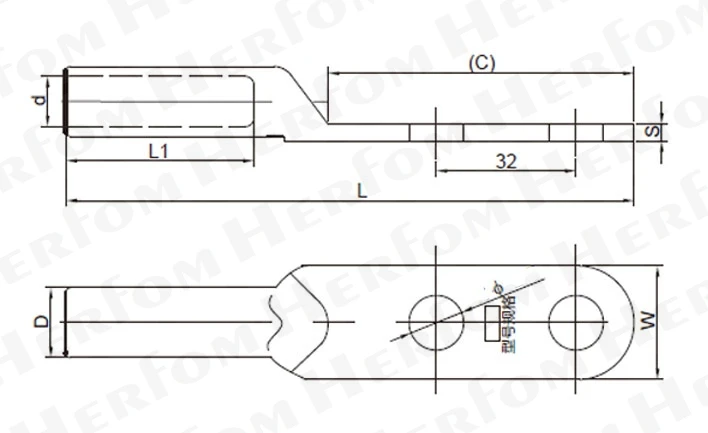

| Item | D (mm) | d (mm) | L (mm) | L1 (mm) | W (mm) | S (mm) | Φ (mm) | L2 (mm) |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||||
| DT-10S | 9 | 5.2 | 84 | 30 | 20 | 2 | 8.5 | 20 |
| DT-16S | 10 | 6.1 | 87 | 31 | 20 | 2.2 | 8.5 | 20 |
| DT-25S | 11 | 7.1 | 92 | 34 | 20 | 2.4 | 8.5 | 20 |
| DT-35S | 12 | 8.5 | 100 | 36 | 23 | 2.7 | 10.5 | 20 |
| DT-50S | 14 | 9.8 | 104 | 39 | 23 | 3 | 10.5 | 20 |
| DT-70S | 16 | 11.5 | 117 | 43 | 28 | 3.5 | 12.5 | 25 |
| DT-95S | 18 | 13.5 | 123 | 47 | 28 | 4 | 12.5 | 25 |
| DT-120S | 20 | 15 | 135 | 50 | 34 | 4.5 | 12.5 | 32 |
| DT-150S | 22 | 17 | 142 | 52 | 34 | 5 | 12.5 | 32 |
| DT-185S | 25 | 18.6 | 156 | 56 | 40 | 5.5 | 12.5 | 32 |
| DT-240S | 27 | 21.5 | 165 | 60 | 40 | 6 | 12.5 | 32 |
| DT-300S | 31 | 24 | 180 | 68 | 50 | 7.5 | 12.5 | 32 |
| DT-400S | 34 | 27 | 195 | 78 | 55 | 8.5 | 12.5 | 32 |
| DT-500S | 38 | 30 | 205 | 82 | 55 | 9.5 | 12.5 | 32 |
| Other Size | Please contact sales |
