DTL-1 Bimetal Crimp Lug
Introduction
- Model: DTL-1
- Material: CU≥99.9%, AL≥99.5%
- Feature:
- Suitable for aluminum to copper terminations
- Prefilled with jointing compound
- Friction welded
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

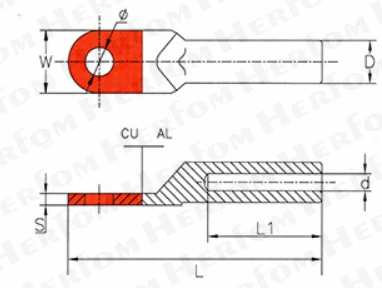

| Item | Φ±0.3 (mm) | D±0.2 (mm) | d±0.2 (mm) | L±2 (mm) | L1±2 (mm) | W±0.2 (mm) | S±0.2 (mm) | Package (PCS) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||||||
| DTL-1-10 | 8.5 | 10 | 5.2 | 65 | 35 | 16 | 2.2 | 1440 | 17 |
| DTL-1-16 | 8.5 | 11 | 6.1 | 70 | 35 | 16 | 2.2 | 1200 | 16.5 |
| DTL 1-25 | 8.5 | 12 | 7.1 | 75 | 38 | 18 | 2.8 | 960 | 17.5 |
| DTL 135 | 10.5 | 14 | 8.5 | 85 | 42 | 20.5 | 3 | 720 | 16 |
| DTL-1-50 | 10.5 | 16 | 9.8 | 90 | 46 | 23 | 3.4 | 540 | 21 |
| DTL-1-70 | 12.5 | 18 | 11.5 | 102 | 51 | 26 | 3.6 | 360 | 18 |
| DTL-1-95 | 12.5 | 21 | 13.5 | 112 | 51 | 28 | 4.2 | 240 | 16.5 |
| DTL-1-120 | 14.5 | 23 | 15 | 120 | 59 | 30 | 4.8 | 180 | 16.5 |
| DTL-1-150 | 14.5 | 25 | 17 | 126 | 59 | 34 | 5.3 | 180 | 20.5 |
| DTL-1-185 | 16.5 | 27 | 18.6 | 133 | 63 | 37 | 5.8 | 120 | 17.5 |
| DTL-1-240 | 16.5 | 30 | 21.5 | 140 | 62 | 40 | 6 | 96 | 21 |
| DTL-1-300 | 21 | 34 | 23.5 | 160 | 69 | 45 | 7 | 72 | 18 |
| DTL-1-400 | 21 | 38 | 26.5 | 170 | 70 | 50 | 8 | 54 | 19 |
| DTL-1-500 | 21 | 45 | 29.5 | 175 | 70 | 50 | 8 | 48 | 20 |
| DTL-1-630 | - | 54 | 32.5 | 225 | 85 | 60 | - | 48 | 21 |
| DTL-1-800 | - | 60 | 37 | 270 | 90 | 100 | - | 36 | 22 |
| Other Size | Please Contact Sales |
