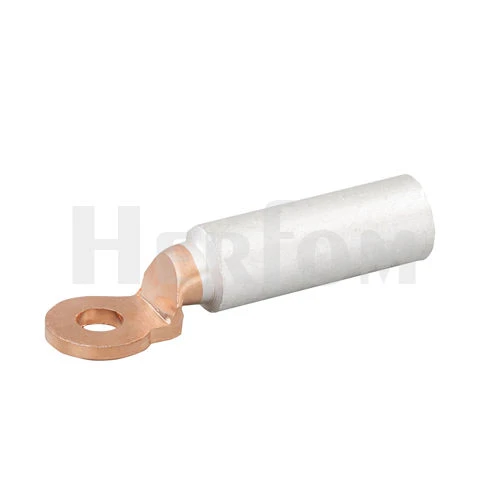

DTL-2 Bimetal Crimp Lug
Introduction
- Model: DTL-2
- Material: CU≥99.9%, AL≥99.5%
- Feature:
- Suitable for aluminum to copper terminations
- Aluminum barrel is filled by neutral grease and covered by cap
- Friction welded
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

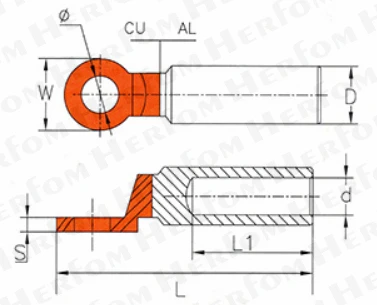

| Item | Φ±0.3 (mm) | D±0.2 (mm) | d±0.2 (mm) | L±2 (mm) | L1±2 (mm) | W±0.2 (mm) | S±0.2 (mm) | Package (PCS) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||||||
| DTL-2-10 | 10.5 | 14 | 5.5 | 80 | 42 | 20 | 3 | 480 | 21 |
| DTL-2-16 | 10.5 | 16 | 6.5 | 80 | 42 | 20 | 3 | 480 | 22 |
| DTL-2-25 | 10.5 | 16 | 7.5 | 80 | 42 | 20 | 3 | 480 | 22 |
| DTL-2-35 | 10.5 | 16 | 8.5 | 80 | 42 | 20 | 3 | 480 | 22 |
| DTL-2-50 | 12.8 | 20 | 9.8 | 90 | 43 | 25 | 4.5 | 300 | 21 |
| DTL-2-70 | 12.8 | 20 | 11.5 | 90 | 43 | 25 | 4.5 | 300 | 20 |
| DTL-2-95 | 12.8 | 20 | 13.5 | 90 | 43 | 25 | 4.5 | 300 | 18 |
| DTL-2-120 | 12.8 | 25 | 15 | 114 | 60 | 30 | 5.5 | 180 | 22 |
| DTL-2-150 | 12.8 | 25 | 16.5 | 114 | 60 | 30 | 5.5 | 180 | 21 |
| DTL-2-185 | 12.8 | 32 | 18.5 | 118 | 60 | 35 | 6 | 90 | 20 |
| DTL-2-240 | 12.8 | 32 | 21.5 | 118 | 60 | 35 | 6 | 90 | 19 |
| DTL-2-300 | 12.8 | 34 | 23.5 | 127 | 72 | 35 | 6 | 90 | 20 |
| DTL-2-400 | 17 | 40 | 26 | 160 | 93 | 36 | 7 | 54 | 21 |
| DTL-2-500 | 17 | 47 | 29.5 | 160 | 94 | 36 | 7 | 54 | 20 |
| DTL-2-630 | 17 | 47 | 32.5 | 180 | 94 | 50 | 9 | 54 | 22 |
| Other Size | Please Contact Sales |
