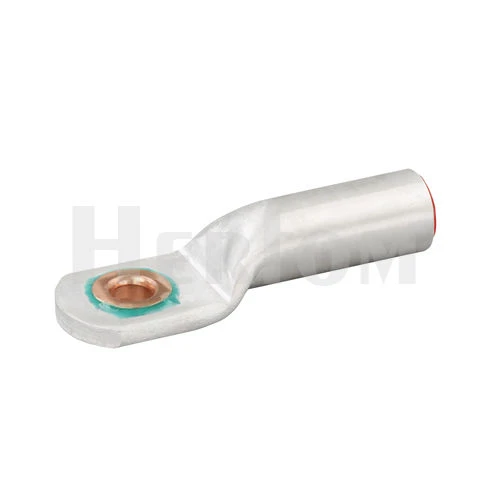

DTL-3 Bimetal Crimp Lug
Introduction
- Model: DTL-3
- Material: CU≥99.9%, AL≥99.5%
- Feature:
- Suitable for screwing non-tension aluminum connections
- Using CU-washers in humid areas and for pre-rounded sector shaped conductors
- With CU eye in screw-on and markings for correct crimping
- Aluminum barrel is filled by neutral grease and covered by cap
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | D±0.2 (mm) | d±0.2 (mm) | Φ±0.3 (mm) | C1±1(mm) | L±2 (mm) | W±0.2 (mm) | Package (PCS) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | |||||||
| DTL-3-35 | 14 | 8.5 | 10.5 | 14.9 | 82 | 25 | 960 | 25 |
| DTL-3-50 | 16 | 10 | 10.5 | 14.5 | 87 | 27 | 600 | 22 |
| DTL-3-70 | 18 | 11.5 | 13 | 17.2 | 102 | 32 | 480 | 24 |
| DTL-3-95 | 21 | 13.5 | 13 | 19.6 | 106 | 35 | 240 | 21 |
| DTL-3-120 | 23 | 15 | 13 | 16.5 | 112 | 35 | 240 | 22 |
| DTL-3-150 | 25 | 16.5 | 13 | 18.9 | 125 | 35 | 180 | 19 |
| DTL-3-185 | 28 | 18.5 | 13 | 22 | 133 | 42 | 120 | 17 |
| DTL-3-240 | 32 | 21 | 17 | 26.2 | 140 | 46 | 120 | 22 |
| DTL-3-300 | 34 | 23.5 | 17 | 26 | 155 | 50 | 90 | 19 |
| DTL-3-400 | 38 | 26.5 | 17 | 30 | 170 | 58 | 72 | 23 |
| Other Size | Please Contact Sales |
