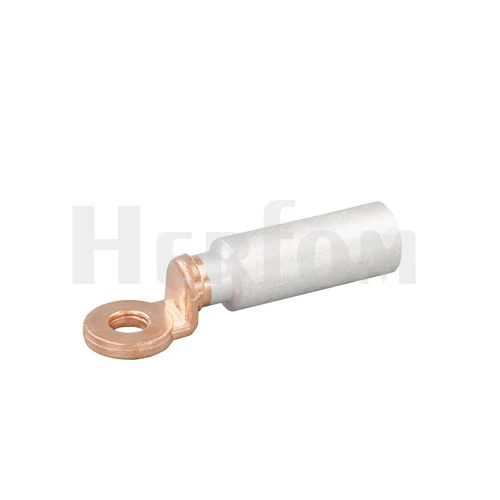

DTL-5 Bimetal Crimp Lug
Introduction
- Model: DTL-5
- Material: CU≥99.9%, AL≥99.5%
- Feature:
- Suitable for connecting ABC cables to transformers, switchgear etc. on the pole top
- Friction welded
- Aluminium barrel is filled by neutral grease and covered by cap
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

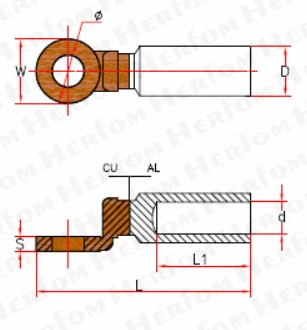

| Item | Φ±0.3 (mm) | D±0.2 (mm) | d±0.2 (mm) | L±2 (mm) | L1±2 (mm) | W±0.2 (mm) | S±0.2 (mm) | Package (PCS) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||||||
| DTL-5-16 | 10.5 | 16 | 5.5 | 80 | 40 | 20 | 4 | 480 | 22 |
| DTL-5-25 | 10.5 | 16 | 7 | 80 | 40 | 20 | 4 | 480 | 22 |
| DTL-5-35 | 10.5 | 16 | 8.2 | 80 | 40 | 20 | 4 | 480 | 22 |
| DTL-5-50 | 12.8 | 20 | 9.2 | 90 | 43 | 25 | 5.5 | 300 | 23 |
| DTL-5-70 | 12.8 | 20 | 11.2 | 90 | 43 | 25 | 5.5 | 300 | 23 |
| DTL-5-95 | 12.8 | 20 | 12.5 | 90 | 43 | 25 | 5.5 | 300 | 23 |
| DTL-5-120 | 12.8 | 25 | 14 | 112 | 58 | 30 | 6.5 | 180 | 26 |
| DTL-5-150 | 12.8 | 25 | 16.5 | 112 | 58 | 30 | 6.5 | 180 | 26 |
| DTL-5-185 | 12.8 | 32 | 18.5 | 122 | 60 | 35 | 7 | 90 | 23 |
| DTL-5-240 | 12.8 | 32 | 20 | 122 | 60 | 35 | 7 | 90 | 23 |
| DTL-5-300 | 12.8 | 34 | 23.5 | 125 | 65 | 35 | 7 | 90 | 25 |
| DTL-5-400 | 17 | 40 | 26 | 160 | 90 | 36 | 7 | 54 | 21 |
| DTL-5-500 | 17 | 40 | 29.5 | 160 | 90 | 36 | 7 | 54 | 21 |
| Other Size | Please Contact Sales |
