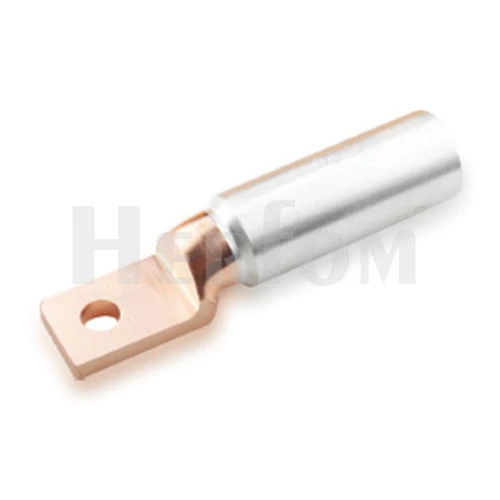

DTL-F Bimetal Crimp Lug
Introduction
- Model: DTL-F
- Material: CU≥99.9%, AL≥99.5%
- Feature:
- The solid palm eliminates the ingress of moisture
- Prefilled with jointing compound
- Friction welded
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | D (mm) | d (mm) | W (mm) | d1 (mm) | L1 (mm) | L (mm) | S (mm) |
|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||||
| DTL-F-10 | 16 | 4.5 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-16 | 16 | 5.5 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-25 | 16 | 7 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-35 | 16 | 8.5 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-50 | 20 | 9.5 | 17 | 10.5 | 50 | 100 | 5.2 |
| DTL-F-70 | 20 | 11.5 | 17 | 10.5 | 50 | 100 | 5.2 |
| DTL-F-95 | 20 | 13 | 17 | 10.5 | 50 | 100 | 5.2 |
| DTL-F-120 | 25 | 15 | 21 | 13 | 60 | 120 | 6.2 |
| DTL-F-150 | 25 | 16.5 | 21 | 13 | 60 | 120 | 6.2 |
| DTL-F-185 | 32 | 18 | 25 | 13 | 60 | 125 | 7.2 |
| DTL-F-240 | 32 | 19.5 | 25 | 13 | 60 | 125 | 7.2 |
| DTL-F-300 | 34 | 23.5 | 30 | 13 | 65 | 145 | 8 |
| DTL-F-400 | 40 | 26 | 32 | 13 | 70 | 150 | 8 |
| DTL-F-500 | 40 | 29 | 32 | 13 | 70 | 150 | 8 |
| Other Size | Please Contact Sales |
