GT-2 Copper Crimp Connector(Oil-Plugging)
Introduction
- Model: GT-2
- Material: Copper
- These products are applicable to connect the circular wire and hemicycle-sertor wire in distribution equipment or power supply cables.
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

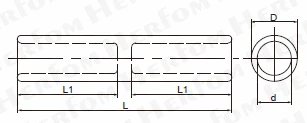

| Item | D (mm) | d (mm) | L1 (mm) | L (mm) |
|---|---|---|---|---|
| Other Size | Please Contact Sales | |||
| GT-2-16 | 10 | 6.1 | 30 | 65 |
| GT-2-25 | 11 | 7.1 | 32 | 70 |
| GT-2-35 | 12 | 8.5 | 34 | 75 |
| GT-2-50 | 14 | 9.8 | 36 | 80 |
| GT-2-70 | 16 | 11.5 | 42 | 90 |
| GT-2-95 | 18 | 13.5 | 44 | 95 |
| GT-2-120 | 20 | 15 | 47 | 100 |
| GT-2-150 | 22 | 17 | 49 | 105 |
| GT-2-185 | 25 | 18.6 | 50 | 110 |
| GT-2-240 | 27 | 21.5 | 55 | 120 |
| GT-2-300 | 31 | 24 | 60 | 130 |
| GT-2-400 | 34 | 27 | 65 | 140 |
| Other Size | Please Contact Sales |
