JG Copper Crimp Lug (Mainly For Boats Use)
Introduction
- Title: JG Copper Crimp Lug (Mainly For Boats Use)
- Model: JG
- Material: Copper
- Surface: Outer tin plating
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

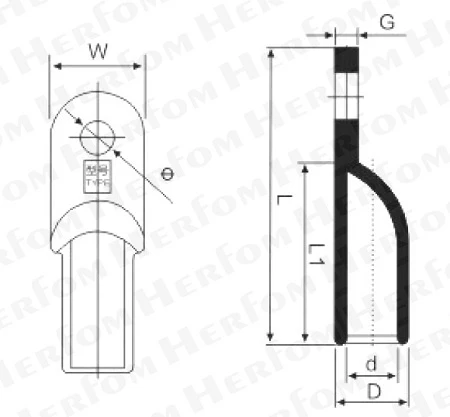

| Item | D±0.2 (mm) | d±0.2 (mm) | G±0.3 (mm) | L±1.5 (mm) | L1±1 (mm) | W±1 (mm) | Φ±0.5 (mm) | Thickness (mm) |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||||
| JG10-6 | 8 | 5.6 | 2.5 | 38 | 21 | 12 | 6.5 | 1.35 |
| JG10-8 | 8 | 5.6 | 2.5 | 38 | 21 | 13 | 8.5 | 1.35 |
| JG16-6 | 9 | 6.4 | 3 | 40 | 23 | 13 | 6.5 | 1.35 |
| JG16-8 | 9 | 6.4 | 3 | 40 | 23 | 13 | 8.5 | 1.35 |
| JG25-6 | 10 | 7.3 | 3 | 45 | 25 | 14 | 6.5 | 1.35 |
| JG25-8 | 10 | 7.3 | 3 | 45 | 25 | 14 | 8.5 | 1.35 |
| JG35-8 | 11 | 8.2 | 3 | 50 | 28 | 15 | 8.5 | 1.4 |
| JG35-10 | 11 | 8.2 | 2.8 | 50 | 28 | 16 | 10.5 | 1.4 |
| JG50-8 | 13 | 10 | 3 | 54 | 30 | 19 | 8.5 | 1.5 |
| JG50-10 | 13 | 10 | 3 | 54 | 30 | 19 | 10.5 | 1.5 |
| JG70-8 | 16 | 12 | 3.7 | 61 | 33 | 23 | 8.5 | 2 |
| JG70-10 | 16 | 12 | 3.7 | 61 | 33 | 23 | 10.5 | 2 |
| JG95-8 | 18 | 14 | 4.2 | 67 | 36 | 26 | 8.5 | 2 |
| JG95-10 | 18 | 14 | 4.2 | 67 | 36 | 26 | 10.5 | 2 |
| JG95-12 | 18 | 14 | 4.2 | 67 | 36 | 26 | 12.5 | 2 |
| JG120-10 | 20 | 16 | 4.4 | 75 | 43 | 29 | 10.5 | 2.2 |
| JG120-12 | 20 | 16 | 4.4 | 75 | 43 | 29 | 12.5 | 2.2 |
| JG120-14 | 20 | 16 | 4.4 | 75 | 43 | 29 | 14.5 | 2.2 |
| JG120-16 | 20 | 16 | 4.4 | 75 | 43 | 29 | 16.5 | 2.2 |
| JG150-10 | 22 | 17 | 4.6 | 80 | 57 | 32 | 10.5 | 2.3 |
| JG150-12 | 22 | 17 | 4.6 | 80 | 57 | 32 | 12.5 | 2.3 |
| JG150-14 | 22 | 17 | 4.6 | 80 | 57 | 32 | 14.5 | 2.3 |
| JG150-16 | 22 | 17 | 4.6 | 80 | 57 | 32 | 19.5 | 2.3 |
| JG185-10 | 25 | 19 | 5.8 | 86 | 59 | 35 | 10.5 | 2.9 |
| JG185-12 | 25 | 19 | 5.8 | 86 | 59 | 35 | 12.5 | 2.9 |
| JG185-14 | 25 | 19 | 5.8 | 86 | 59 | 35 | 14.5 | 2.9 |
| JG185-16 | 25 | 19 | 5.8 | 86 | 59 | 35 | 16.5 | 2.9 |
| JG240-12 | 26 | 21 | 5.8 | 93 | 62 | 39 | 13 | 3 |
| JG240-14 | 26 | 21 | 5.8 | 93 | 62 | 39 | 15 | 3 |
| JG240-16 | 26 | 21 | 5.8 | 93 | 62 | 39 | 17 | 3 |
| JG240-20 | 26 | 21 | 5.8 | 93 | 62 | 39 | 21 | 3 |
| JG300-12 | 30 | 24 | 6 | 103 | 67 | 43 | 13 | 3 |
| JG300-14 | 30 | 24 | 6 | 103 | 67 | 43 | 15 | 3 |
| JG300-16 | 30 | 24 | 6 | 103 | 67 | 43 | 17 | 3 |
| JG300-20 | 30 | 24 | 6 | 103 | 67 | 43 | 21 | 3 |
| Other Size | Please contact sales |
