SC(JGA) Copper Cable Lug (No Peephole)
Introduction
- Model: SC(JGA)
- Material: Copper
- Appearance: Tin plated
- Working Temperature: -55℃~150℃
- Feature: No Peephole
- Application: There products are suitable for the connection of copper conductors (section 1.5mm²-1000mm²) in power cable with electronic equiment they are made of copper tube and coated with tin.
Specification
Model meaning: SC + cable square(mm²)
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

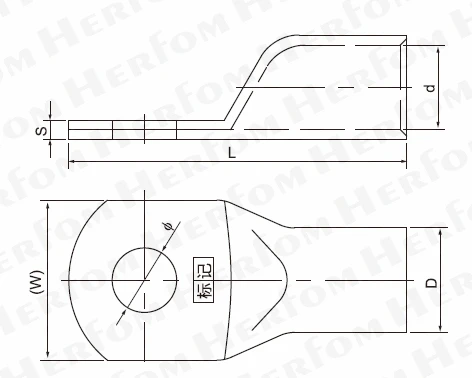

| Item | Φ (mm) | D (mm) | d (mm) | L (mm) | (W) (mm) | S (mm) |
|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||
| SC(JGA)-1.5 | Φ4.2/Φ5.2 | 3.5 | 2.5 | 18 | 7 | 1 |
| SC(JGA)-2.5 | Φ4.2/Φ5.2 | 4 | 3 | 19 | 8 | 1 |
| SC(JGA)-4 | Φ5.2/Φ6.4 | 4.8 | 3.5 | 20 | 8 | 1.2 |
| SC(JGA)-6 | Φ5.2/Φ6.4 | 5.5 | 4.1 | 23 | 9 | 1.4 |
| SC(JGA)-10 | Φ6.4/Φ8.4 | 6.7 | 5 | 25.5 | 11 | 1.6 |
| SC(JGA)-16 | Φ6.4/Φ8.4 | 7.5 | 5.8 | 30 | 12 | 1.8 |
| SC(JGA)-25 | Φ6.4/Φ8.4/Φ10.5 | 9 | 7.2 | 32.5 | 13 | 1.8 |
| SC(JGA)-35 | Φ6.4/Φ8.4/Φ10.5 | 10.5 | 8.5 | 37 | 15 | 2 |
| SC(JGA)-50 | Φ8.4/Φ10.5 | 12.5 | 10.1 | 45 | 18 | 2.4 |
| SC(JGA)-70 | Φ10.5/Φ12.5 | 14.5 | 11.7 | 49 | 21 | 2.8 |
| SC(JGA)-95 | Φ10.5/Φ12.5 | 17 | 13.8 | 54 | 25 | 3.2 |
| SC(JGA)-120 | Φ12.5、Φ16.5 | 19.5 | 15.9 | 62 | 28 | 3.6 |
| SC(JGA)-150 | Φ12.5/Φ16.5 | 20.5 | 16.7 | 68 | 30 | 3.8 |
| SC(JGA)-185 | Φ16.5 | 23.5 | 19.1 | 76 | 34 | 4.4 |
| SC(JGA)-240 | Φ16.5 | 26 | 21.4 | 90 | 38 | 4.6 |
| SC(JGA)-300 | Φ16.5/Φ20.5 | 30 | 24.6 | 100 | 44 | 5.4 |
| SC(JGA)-400 | Φ16.5/Φ20.5 | 34 | 27.4 | 110 | 50 | 6.6 |
| SC(JGA)-500 | Φ16.5/Φ20.5 | 38 | 30.8 | 120 | 55 | 7.2 |
| SC(JGA)-630 | Φ20.5 | 45 | 35.6 | 135 | 65 | 9.2 |
| SC(JGA)-800 | Φ22.5 | 50 | 40.4 | 170 | 72 | 9.6 |
| SC(JGA)-1000 | Φ22.5 | 55 | 45 | 200 | 80 | 10 |
| Other Size | Please contact sales |
