    SC(JGB) Copper Cable Lug (Horn Shape)
    SC(JGB) Copper Cable Lug (Horn Shape)

    SC(JGB) Copper Cable Lug (Horn Shape)

  • Model: SC(JGB)
  • Material: Copper
  • Appearance: Tin plated
  • Working Temperature: -55℃~150℃
    • Send Inquiry Now

    Introduction

    • Model: SC(JGB)
    • Material: Copper
    • Appearance: Tin plated
    • Working Temperature: -55℃~150℃
    • Feature:
      1. Small Peephole Design
      2. Horn Shape
    • Application: There products are suitable for the connection of copper conductors (section 1.5mm²-1000mm²) in power cable with electronic equiment they are made of copper tube and coated with tin.

    Specification

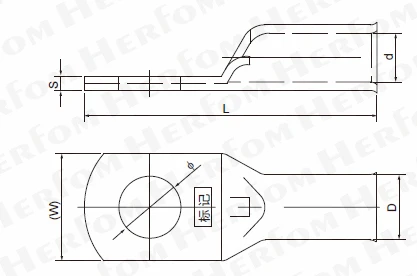

    drawing

    Model meaning: SC + cable square(mm²)

    The following table is the latest size. These are the regular sizes.

    If you need more size, please contact us.

    Item Φ (mm) D (mm) d (mm) L (mm) (W) (mm) S (mm)
    Other Size Please contact sales
    SC(JGB)-1.5 Φ4.2/Φ5.2 3.5 2.5 19 7 1
    SC(JGB)-2.5 Φ4.2/Φ5.2 4 3 20 8 1
    SC(JGB)-4 Φ5.2/Φ6.4 4.8 3.5 22 8 1.2
    SC(JGB)-6 Φ5.2/Φ6.4 5.5 4.1 24.5 9 1.4
    SC(JGB)-10 Φ6.4/Φ8.4 6.7 5 26 11 1.6
    SC(JGB)-16 Φ6.4/Φ8.4 7.5 5.8 32 12 1.8
    SC(JGB)-25 Φ6.4/Φ8.4/Φ10.5 9 7.2 34.5 13 1.8
    SC(JGB)-35 Φ6.4/Φ8.4/Φ10.5 10.5 8.5 38 15 2
    SC(JGB)-50 Φ8.4/Φ10.5 12.5 10.1 47 18 2.4
    SC(JGB)-70 Φ10.5/Φ12.5 14.5 11.7 52 21 2.8
    SC(JGB)-95 Φ10.5/Φ12.5 17 13.8 57 25 3.2
    SC(JGB)-120 Φ12.5/Φ16.5 19.5 15.9 63 28 3.6
    SC(JGB)-150 Φ12.5/Φ16.5 20.5 16.7 71 30 3.8
    SC(JGB)-185 Φ16.5 23.5 19.1 78.5 34 4.4
    SC(JGB)-240 Φ16.5 26 21.4 92.5 38 4.6
    SC(JGB)-300 Φ16.5/Φ20.5 30 24.6 102 44 5.4
    SC(JGB)-400 Φ16.5/20.5 34 27.4 113 50 6.6
    SC(JGB)-500 Φ16.5/Φ20.5 38 30.8 122.5 55 7.2
    SC(JGB)-630 Φ20.5 45 35.6 135 65 9.2
    Other Size Please contact sales
