CD Close End Connector
Introduction
- Model: TCD
- Material: Nylon
Specification

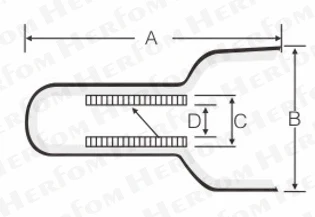

| ITEM | A (mm) | B (mm) | C (mm) | D (mm) | WIRE RANGE (AWG / mm²) |
|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||
| CD-Φ3 | 18 | 9 | 3.6 | 2.8 | 22-16 AWG / 1.25mm² |
| CD-Φ4 | 21 | 9.5 | 3.9 | 3 | 16-14AWG / 2mm² |
| CD-Φ5 | 22.5 | 10.5 | 4.8 | 4 | 12-10AWG / 5.5mm² |
| CD-Φ6 | 24 | 12 | 5.6 | 4.8 | 8AWG / 8mm² |
| CD-Φ7 | 25.5 | 13 | 6.5 | 5.5 | 8-6AWG / 10mm² |
| CD-Φ8 | 25.5 | 14 | 7.5 | 6 | 6AWG / 13mm² |
| CD-Φ10 | 29.5 | 15.5 | 9.3 | 7.8 | 4AWG / 16mm² |
| Other Size | Please Contact Sales |
