T Quick Splice Connector
Introduction
- Model: T
- Material: Terminal: Copper / Insulation: Nylon
- Surface: Electro tin plated
Specification

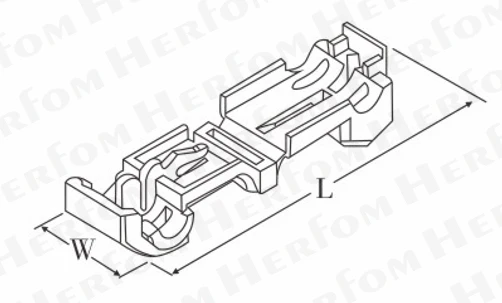

| Item | W (mm) | L (mm) | Cable Size (A.W.G) | Cable Size (mm²) | Color |
|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||
| T1 | 9.8 | 37.0 | 22-18A.W.G | 0.5~0.75mm² | Red |
| T2 | 9.8 | 37.0 | 18-14A.W.G | 0.75~2.5mm² | Blue |
| T3 | 9.8 | 37.0 | 12A.W.G | 4mm² | Yellow |
| Other Size | Please Contact Sales |
