V Wire End Cap
Introduction
- Model: V
Specification

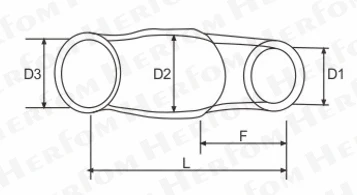

| Item | D1 (mm) | D2 (mm) | D3 (mm) | L (mm) | F (mm) |
|---|---|---|---|---|---|
| Other Size | Please Contact Sales | ||||
| V1.25 | 2.8 | 3.3 | 3.1 | 13 | 7 |
| V2 | 3.3 | 4.5 | 3.7 | 15 | 7 |
| V3.5 | 4.2 | 5.7 | 4.1 | 20 | 8 |
| V5.5 | 4.8 | 5.7 | 5.2 | 20 | 8 |
| V8 | 6.2 | 7.2 | 6.2 | 20 | 9 |
| V14 | 7.5 | 10 | 8 | 27 | 11 |
| V22 | 10.5 | 12 | 9.5 | 30 | 15 |
| V38 | 12.5 | 14 | 11.8 | 36 | 16.5 |
| V60 | 15 | 16.8 | 13.5 | 39 | 19 |
| V70 | 16 | 17.5 | 14.5 | 43 | 20 |
| V80 | 17 | 19 | 16 | 47 | 22 |
| V 100 | 19 | 22 | 18 | 54 | 24 |
| V 125 | 21 | 24 | 20 | 57 | 25 |
| V 150 | 23 | 24.5 | 22 | 65 | 30 |
| V 200 | 27 | 32 | 24 | 65 | 30 |
| V 240 | 29 | 38 | 26.5 | 77 | 39 |
| V325 | 29 | 38 | 29 | 77 | 40 |
| V 400 | 42 | 45 | 36 | 85 | 41 |
| V500 | 46 | 48 | 40 | 88 | 42 |
| V 630 | 52 | 54 | 44 | 92 | 47 |
| Other Size | Please Contact Sales |
