BHT Heat Shrinkable Tube (Copper Tube, Copper Plate)
Introduction
- Model: BHT
- Material: Terminal: Copper / Insulation: Nylon Heat Shrink
- Surface: Electro tin plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

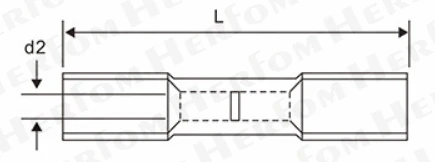

| ITEM | d2 (mm) | L (mm) | Imax | Wire Range (A.W.G) | Wire Range (mm²) | Color |
|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | |||||
| BHT0.5 | 1.3 | 26.0 | 9A | 22-20 | 0.3-0.5 | Yellow |
| BHT1.25 | 1.7 | 36.0 | 19A | 22-16 | 0.5-1.5 | Red |
| BHT2 | 2.3 | 36.0 | 27A | 16-14 | 1.5-2.5 | Blue |
| BHT5.5 | 3.4 | 41.0 | 48A | 12-10 | 4-6 | Yellow |
| Other Size | Please Contact Sales |
