BNYF Nylon Butt Connector
Introduction
- Model: BNYF
- Material: Terminal: Copper / Insulation: Nylon
- Surface: Electro tin plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

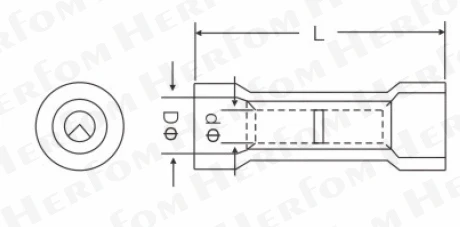

| ITEM | L (mm) | DΦ (mm) | dΦ (mm) | Joint material | WIRE RANGE (AWG/mm²) | Color |
|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | |||||
| BNYF 0.5 | 20 | 2 | 1.3 | Copper | 26~22AWG / 0.2~0.5mm² | Yellow |
| BNYF 1.25 | 27.3 | 3.2 | 1.7 | Copper | 22~16AWG / 0.5~1.5mm² | Red |
| BNYF 2 | 27.3 | 3.8 | 2.3 | Copper | 16~14AWG / 1.5~2.5mm² | Blue |
| BNYF 5.5 | 27.3 | 5.3 | 3.4 | Copper | 12~10AWG / 4~6mm² | Yellow |
| Other Size | Please Contact Sales |
