BV/PVT Butt Connector
Introduction
- Model: BV/PVT
- Material: Terminal: Copper / Insulation: PVC
- Surface: Electro tin plated
Specification
Long Fully Insulated Intermediate Joint
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

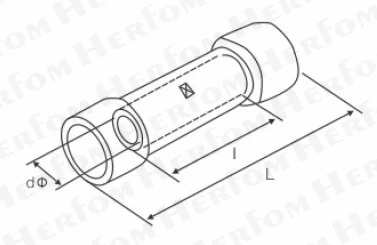

| Item | Cable Size (A.W.G) | Cable Size (mm²) | I (mm) | dΦ (mm) | L (mm) | Imax | Color |
|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||||
| BV1.25 | 22~16 | 0.5~1.5 | 15.0 | 1.7 | 26.0 | 19A | Red |
| BV2 | 16~14 | 1.5~2.5 | 15.0 | 2.3 | 26.0 | 27A | Blue |
| BV5.5 | 12~10 | 4~6 | 15.0 | 3.4 | 26.0 | 48A | Yellow |
| BV8 | #8 | 6~10 | 21.0 | 4.5 | 32.0 | 62A | Red |
| BV14 | #6 | 10~16 | 26.0 | 5.8 | 42.0 | 88A | Blue |
| BV22 | #4 | 16~25 | 29.0 | 7.7 | 50.0 | 115A | Yellow |
| BV38 | #2 | 35~50 | 32.0 | 9.4 | 55.0 | 160A | Red |
| Other Size | Please contact sales |
Short Fully Insulated Intermediate Joint
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | Cable Size (A.W.G) | Cable Size (mm²) | I (mm) | dΦ (mm) | L (mm) | Imax | Color |
|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||||
| PVT1.25 | 22~16 | 0.5~15 | 8.0 | 1.7 | 16.0 | 19A | Red |
| PVT2 | 16~14 | 1.5~2.5 | 8.0 | 2.3 | 16.0 | 27A | Blue |
| PVT5.5 | 12~10 | 4~6 | 8.0 | 3.4 | 20.0 | 48A | Yellow |
| Other Size | Please contact sales |
