DBV Insulated Blade Terminal
Introduction
- Model: DBV
- Material: Terminal: Copper / Insulation: vinyl(pvc)
- Surface: Electro tin plated
Specification
Conductor Area: 0.5~1.5mm² / 22~16AWG
Maximum Current: Imax=19A
Material: Copper
Material Thickness: 0.75mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

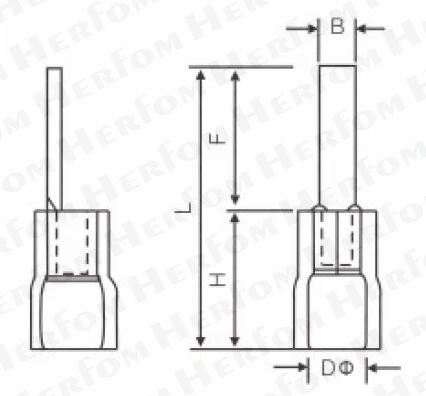

| Item | B (mm) | L (mm) | F (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||
| DBV 1.25-10 | 2.3 | 20.0 | 10.0 | 10.0 | 4.3 | Red |
| DBV 1.25-11 | 2.3 | 21.0 | 11.0 | 10.0 | 4.3 | Red |
| DBV 1.25-14 | 2.3 | 24.0 | 14.0 | 10.0 | 4.3 | Red |
| DBV 1.25-18 | 2.3 | 28.0 | 18.0 | 10.0 | 4.3 | Red |
| Other Size | Please contact sales |
Conductor Area: 1.5~2.5mm² / 16~14AWG
Maximum Current: Imax=27A
Material: Copper
Material Thickness: 0.8mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | B (mm) | L (mm) | F (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||
| DBV 2-10 | 2.3 | 19.0 | 9.0 | 10.0 | 4.9 | Blue |
| DBV 2-14 | 2.3 | 24.0 | 14.0 | 10.0 | 4.9 | Blue |
| DBV 2-18 | 2.3 | 28.0 | 18.0 | 10.0 | 4.9 | Blue |
| Other Size | Please contact sales |
Conductor Area: 4~6mm² / 12~10AWG
Maximum Current: Imax=48A
Material: Copper
Material Thickness: 1.0mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | B (mm) | L (mm) | F (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||
| DBV 5.5-10 | 2.8 | 22.5 | 10.0 | 13.0 | 5.6 | Yellow |
| DBV 5.5-14 | 4.5 | 26.5 | 14.0 | 13.0 | 5.6 | Yellow |
| DBV 5.5-18 | 4.5 | 30.5 | 18.0 | 13.0 | 5.6 | Yellow |
| Other Size | Please contact sales |
