FDD Insulated Female Disconnector
Introduction
- Model: FDD
- Material: Terminal: Brass / Insulation: vinyl(pvc)
- Surface: Electro tin plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

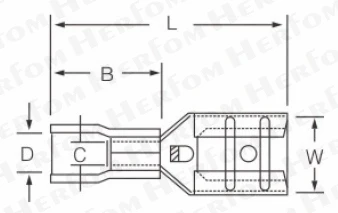

| Item | Name TAB (mm) | Thickness Of Material (mm) | W (mm) | D (mm) | C (mm) | L (mm) | B (mm) | WIRE RANGE (AWG/mm²) | Color |
|---|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||||||
| FDD 1.25-110(5) | 0.5x2.8 | 0.3 | 3.8 | 3.8 | 1.7 | 19.0 | 10.0 | 22~16AWG / 0.5~1.5mm² | Red |
| FDD 1.25-110(8) | 0.8x2.8 | 0.3 | 3.8 | 3.8 | 1.7 | 19.0 | 10.0 | 22~16AWG / 0.5~1.5mm² | Red |
| FDD 1.25-187(5) | 0.5x4.75 | 0.35 | 5.6 | 3.8 | 1.7 | 19.0 | 10.0 | 22~16AWG / 0.5~1.5mm² | Red |
| FDD 1.25-187(8) | 0.8x4.75 | 0.35 | 5.6 | 3.8 | 1.7 | 19.0 | 10.0 | 22~16AWG / 0.5~1.5mm² | Red |
| FDD 1.25-205 | 0.5x5.2 | 0.35 | 6.5 | 3.8 | 1.7 | 20.0 | 10.0 | 22~16AWG / 0.5~1.5mm² | Red |
| FDD 1.25-250 | 0.8x6.35 | 0.4 | 7.4 | 3.8 | 1.7 | 21.0 | 10.0 | 22~16AWG / 0.5~1.5mm² | Red |
| FDD 2-110(5) | 0.5x2.8 | 0.3 | 3.8 | 4.3 | 2.3 | 19.0 | 10.0 | 16~14AWG / 1.5~2.5mm² | Blue |
| FDD 2-110(8) | 0.8x2.8 | 0.3 | 3.8 | 4.3 | 2.3 | 19.0 | 10.0 | 16~14AWG / 1.5~2.5mm² | Blue |
| FDD 2-187(5) | 0.5x4.75 | 0.35 | 5.6 | 4.3 | 2.3 | 19.0 | 10.0 | 16~14AWG / 1.5~2.5mm² | Blue |
| FDD 2-187(8) | 0.8x4.75 | 0.35 | 5.6 | 4.3 | 2.3 | 19.0 | 10.0 | 16~14AWG / 1.5~2.5mm² | Blue |
| FDD 2-205 | 0.5x5.2 | 0.35 | 6.5 | 4.3 | 2.3 | 20.0 | 10.0 | 16~14AWG / 1.5~2.5mm² | Blue |
| FDD 2-250 | 0.8x6.35 | 0.4 | 7.4 | 4.3 | 2.3 | 21.0 | 10.0 | 16~14AWG / 1.5~2.5mm² | Blue |
| FDD 2-312 | 0.8x8.0 | 0.4 | 9.0 | 4.3 | 2.3 | 23.0 | 10.0 | 16~14AWG / 1.5~2.5mm² | Blue |
| FDD 5.5-187 | 0.5x4.75 | 0.4 | 5.6 | 5.7 | 3.4 | 23.0 | 14.0 | 12~10AWG / 4~6mm² | Yellow |
| FDD 5.5-250 | 0.8x6.35 | 0.4 | 7.4 | 5.7 | 3.4 | 25.0 | 13.0 | 12~10AWG / 4~6mm² | Yellow |
| FDD 5.5-312 | 0.8x8.0 | 0.5 | 9.0 | 5.7 | 3.4 | 27.0 | 14.0 | 12~10AWG / 4~6mm² | Yellow |
| FDD 5.5-375 | 1.2x9.4 | 0.5 | 10.9 | 5.7 | 3.4 | 29.6 | 13.0 | 12~10AWG / 4~6mm² | Yellow |
| Other Size | Please contact sales |
