FDFNY/MDFNY Male And Female Fully Insulated Joint (Nylon)
Introduction
- Model: FDFNY/MDFNY
- Material: Terminal: Brass / Insulation: Nylon
- Surface: Electro tin plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

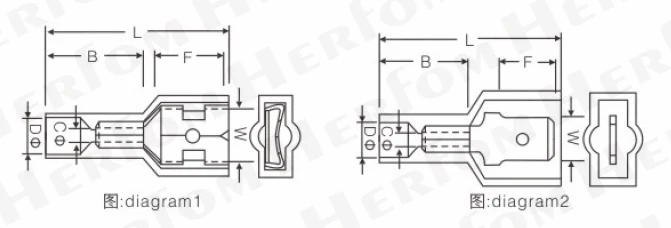

| ITEM | Name Tab (mm) | W (mm) | F (mm) | L (mm) | B (mm) | DΦ (mm) | CΦ (mm) | Diagram | WIRE RANGE (AWG / mm²) | Color |
|---|---|---|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | |||||||||
| FDFNY 1.25-250 | 0.8x6.35 | 6.6 | 7.3 | 22.0 | 12.0 | 4.5 | 1.7 | 1 | 22~16AWG / 0.5~1.5 mm² | Red |
| MDFNY 1.25-250 | 0.8x6.35 | 6.35 | 7.7 | 23.0 | 11.0 | 4.5 | 1.7 | 2 | 22~16AWG / 0.5~1.5 mm² | Red |
| FDFNY 2-250 | 0.8x6.35 | 6.6 | 7.3 | 23.0 | 12.0 | 4.5 | 2.3 | 1 | 16~14AWG / 1.5~2.5 mm² | Blue |
| MDFNY 2-250 | 0.8x6.35 | 6.35 | 7.7 | 24.0 | 11.0 | 4.5 | 2.3 | 2 | 16~14AWG / 1.5~2.5 mm² | Blue |
| FDFNY 5.5-250 | 0.8x6.35 | 6.6 | 7.3 | 23.0 | 12.0 | 5.0 | 3.4 | 1 | 12~10AWG / 4~6 mm² | Yellow |
| MDFNY 5.5-250 | 0.8x6.35 | 6.35 | 7.7 | 24.0 | 11.0 | 5.0 | 3.4 | 2 | 12~10AWG / 4~6 mm² | Yellow |
| Other Size | Please Contact Sales |
