LBV Insulated Lipped Blade Terminal
Introduction
- Model: LBV
- Material: Terminal: Copper / Insulation: vinyl(pvc)
- Surface: Electro tin plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

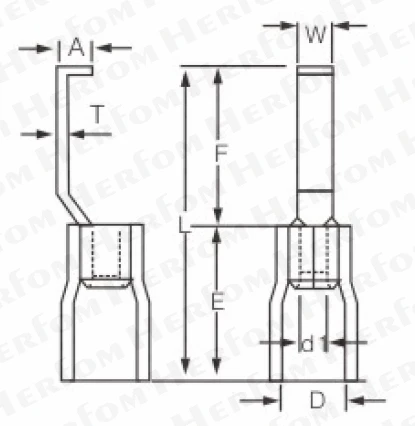

| Item | W (mm) | L (mm) | F (mm) | E (mm) | D (mm) | d1 (mm) | T (mm) | WIRE RANGE (AWG/mm²) | Color |
|---|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||||||
| LBV1.25-3 | 3.0 | 26.8 | 16.8 | 10.0 | 4.3 | 1.7 | 0.75 | 22~16AWG / 0.5~1.5mm² | Red |
| LBV1.25-4.6 | 4.6 | 26.8 | 16.8 | 10.0 | 4.3 | 1.7 | 0.75 | 22~16AWG / 0.5~1.5mm² | Red |
| LBV2-3 | 3.0 | 26.8 | 16.8 | 10.0 | 4.9 | 2.3 | 0.8 | 16~14AWG / 1.5~2.5mm² | Blue |
| LBV2-4.6 | 4.6 | 26.8 | 16.8 | 10.0 | 4.9 | 2.3 | 0.8 | 16~14AWG / 1.5~2.5mm² | Blue |
| LBV5.5-3 | 3.0 | 29.3 | 16.8 | 13.0 | 6.7 | 3.4 | 1.0 | 12~10AWG / 4~6mm² | Yellow |
| LBV5-4.6 | 4.6 | 29.3 | 16.8 | 13.0 | 6.7 | 3.4 | 1.0 | 12~10AWG / 4~6mm² | Yellow |
| Other Size | Please contact sales |
