MPFNY/FRFNY Bullet Nylon Fully Insulated Male Terminal
Introduction
- Model: MPFNY/FRFNY
- Material: Terminal: Copper / Insulation: Nylon
- Surface: Electro tin plated
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

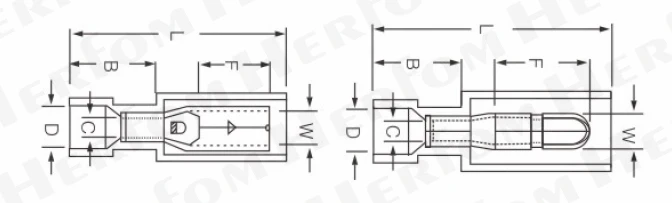

| ITEM | W (mm²) | F (mm²) | L (mm²) | B (mm²) | D (mm²) | C (mm²) | WIRE RANGE (AWG / mm²) | Color |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please Contact Sales | |||||||
| MPFNY1-156 | 4.0 | 10.5 | 27.0 | 11.0 | 4.0 | 1.7 | 22~16AWG / 0.5~1.5 mm² | Red |
| MPFNY2-156 | 4.0 | 10.5 | 27.0 | 11.0 | 4.5 | 2.3 | 16~14AWG / 1.5~2.5 mm² | Blue |
| MPFNY 5.5-195 | 5.0 | 12.0 | 25.0 | 13.0 | 4.5 | 3.4 | 12~10AWG / 4~6 mm² | Yellow |
| FRFNY1-156 | 3.9 | 7.0 | 25.2 | 11.0 | 4.0 | 1.7 | 22~16AWG / 0.5~1.5 mm² | Red |
| FRFNY2-156 | 3.9 | 7.0 | 25.2 | 11.0 | 4.5 | 2.3 | 16~14AWG / 1.5~2.5 mm² | Blue |
| FRFNY5.5-195 | 5.0 | 7.0 | 29.5 | 14.0 | 4.5 | 3.4 | 12~10AWG / 4~6 mm² | Yellow |
| Other Size | Please Contact Sales |
