SV Insulated Spade Terminal
Introduction
- Model: SV
- Material: Terminal: Copper / Insulation: vinyl(pvc)
- Surface: Electro tin plated
Specification
Conductor Area: 0.5~1.5mm² / 22~16AWG
Maximum Current: Imax=19A
Material: Copper
Material Thickness: 0.75mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

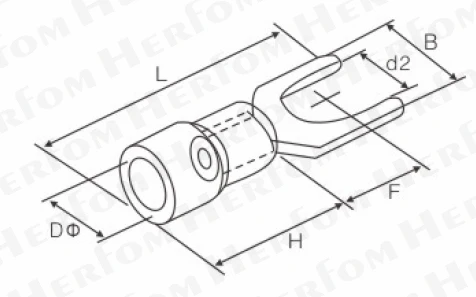

| Item | USA Screw | Screw dia d2 (mm) | B (mm) | L (mm) | F (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||||
| SVS 1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVL 1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS 1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVM 1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVL 1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS 1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVL 1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS 1.25-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVL 1.25-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | 10.0 | 4.3 | Red |
| Other Size | Please contact sales |
Conductor Area: 1.5~2.5mm² / 16~14AWG
Maximum Current: Imax=27A
Material: Copper
Material Thickness: 0.8mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | USA Screw | Screw dia d2 (mm) | B (mm) | L (mm) | F (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||||
| SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVS 2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVL 2-3.5 | #6 | 3.7 | 6.0 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVS 2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVM 2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVL 2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVS 2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVL 2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVS 2-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVL 2-6 | 1/4 | 6.4 | 12.0 | 21.2 | 11.0 | 10.0 | 4.9 | Blue |
| Other Size | Please contact sales |
Conductor Area: 2.5~4mm² / 14~12AWG
Maximum Current: Imax=37A
Material: Copper
Material Thickness: 1.0mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | USA Screw | Screw dia d2 (mm) | B (mm) | L (mm) | F (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||||
| SV 3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7.0 | 13.0 | 6.2 | Black |
| SV 3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | 13.0 | 6.2 | Black |
| SV 3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 7.0 | 13.0 | 6.2 | Black |
| SV 3.5-6 | 1/4 | 6.4 | 12.0 | 28.0 | 12.1 | 13.0 | 6.2 | Black |
| Other Size | Please contact sales |
Conductor Area: 4~6mm² / 12~10AWG
Maximum Current: Imax=48A
Material: Copper
Material Thickness: 1.0mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | USA Screw | Screw dia d2 (mm) | B (mm) | L (mm) | F (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||||
| SV 5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SVS 5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SVL 5.5-4 | #8 | 4.3 | 9.0 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SV 5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SVS 5.5-6 | 1/4 | 6.4 | 9.0 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SVL 5.5-6 | 1/4 | 6.4 | 12.0 | 31.2 | 12.0 | 13.0 | 6.7 | Yellow |
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | 13.0 | 6.7 | Yellow |
| Other Size | Please contact sales |
